SKU: 6320/C3-SKF

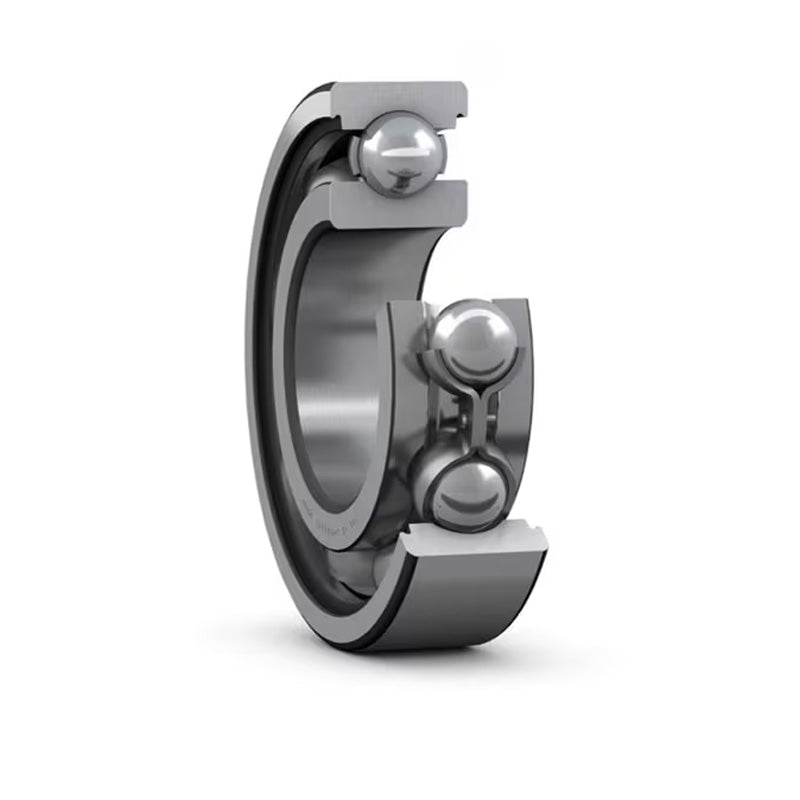

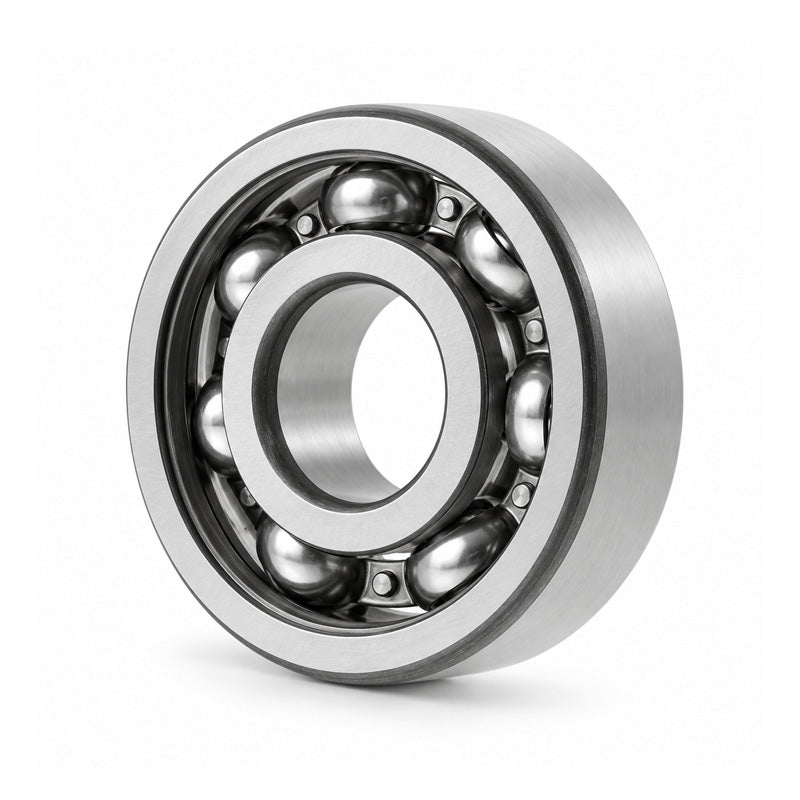

SKF 6320C3 Open Deep Groove Ball Bearing 100x215x47mm
SKF 6320C3 Open Deep Groove Ball Bearing 100x215x47mm
Regular price
CHF 335.05
ex VAT
Regular price
Sale price
CHF 335.05
ex VAT
In stock
Price Break
10+
CHF 298.19
19+
CHF 281.44
29+
CHF 278.09
39+
CHF 274.74
49+
CHF 271.39
74+
CHF 268.04
99+
CHF 251.29
199+
CHF 247.94
249+
CHF 244.59
499+
CHF 241.24
999+
CHF 234.54
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| Dynamic load | 174 kN |
| Static load | 140 kN |
| Fatigue load limit Pu | 4.75 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4300 rpm |
| Weight | 7 kg |
| d1 | 136mm |
| D1 | 179mm |
| D2 | 184mm |
| r1r2 min | 3mm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
