SKU: 6324M/C3VL0241-SKF

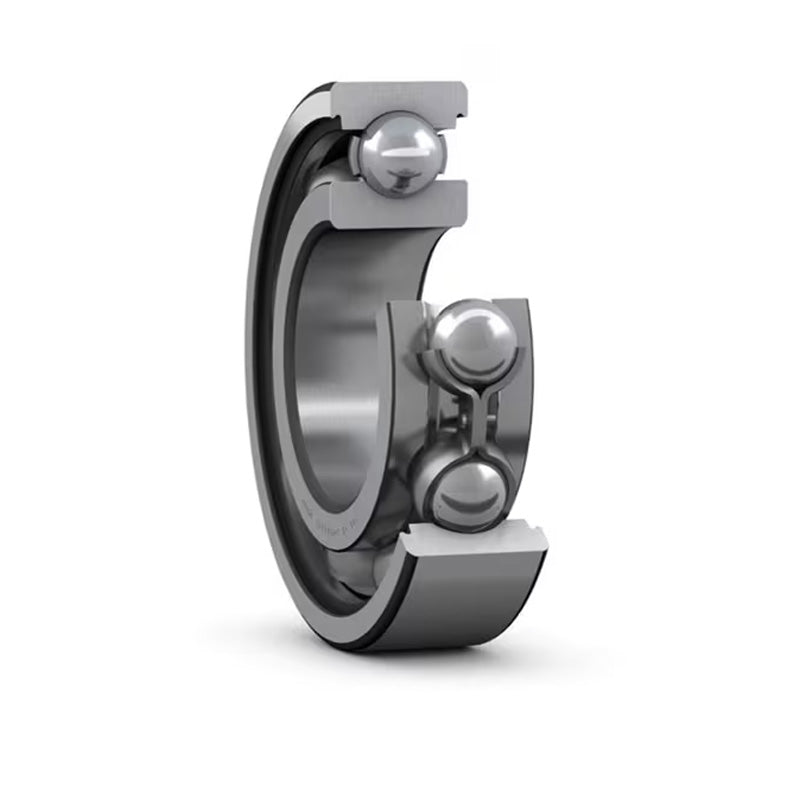

SKF 6324MC3VL0241 Open Deep Groove Ball Bearing 120x260x55mm
SKF 6324MC3VL0241 Open Deep Groove Ball Bearing 120x260x55mm
Regular price
CHF 2,600.00
ex VAT
Regular price
Sale price
CHF 2,600.00
ex VAT
In stock
Price Break
4+
CHF 2,071.93
10+
CHF 1,955.53
20+
CHF 1,932.25
30+
CHF 1,908.97
50+
CHF 1,885.69
75+
CHF 1,862.41
100+
CHF 1,746.00
200+
CHF 1,722.72
250+
CHF 1,699.44
500+
CHF 1,676.16
1000+
CHF 1,629.60
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load | 208 kN |
| Static load | 186 kN |
| Fatigue load limit Pu | 5.7 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 3400 rpm |
| Weight | 12.5 kg |
| d1 | 165mm |
| D1 | 215mm |
| D2 | n/amm |
| r1r2 min | 3mm |
| da min | 134mm |
| Da max | 246mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 14 |
