SKU: 6404-FAG

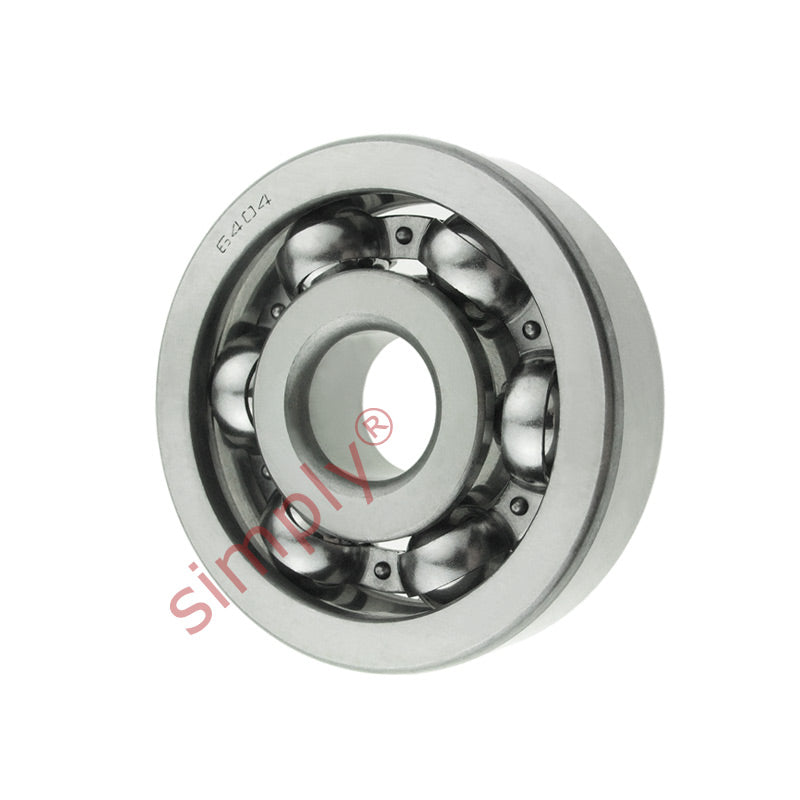

FAG 6404 Open Deep Groove Ball Bearing 20x72x19mm
FAG 6404 Open Deep Groove Ball Bearing 20x72x19mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
10+
CHF 27.49
19+
CHF 25.95
29+
CHF 25.64
39+
CHF 25.33
49+
CHF 25.02
74+
CHF 24.71
99+
CHF 23.17
199+
CHF 22.86
249+
CHF 22.55
499+
CHF 22.24
999+
CHF 21.62
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 15 kN |
| Fatigue load limit Pu | 0.64 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 15000 rpm |
| Mass | 0.4 kg |
| d1 | 37.1mm |
| D1 | 54.8mm |
| r1r2 min | 1.1mm |
| da min | 29mm |
| Da max | 63mm |
| ra max | 1mm |
| Calc factor Kr | 0.035 |
| Calc factor | 11 |
