SKU: 6405-MB

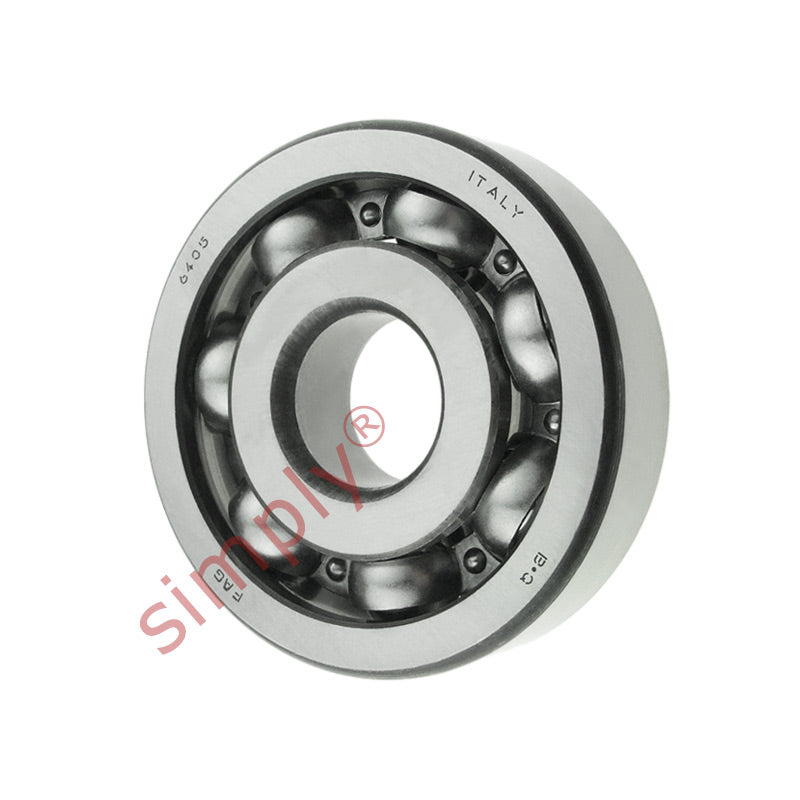

Major Brand 6405 Open Deep Groove Ball Bearing 25x80x21mm
Major Brand 6405 Open Deep Groove Ball Bearing 25x80x21mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
In stock
Price Break
10+
CHF 35.62
19+
CHF 33.62
29+
CHF 33.22
39+
CHF 32.82
49+
CHF 32.42
74+
CHF 32.02
99+
CHF 30.02
199+
CHF 29.62
249+
CHF 29.22
499+
CHF 28.82
999+
CHF 28.02
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 35.8 kN |
| Static load Co | 19.3 kN |
| Fatigue load limit Pu | 0.82 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Mass | 0.53 kg |
| d1 | 45.4mm |
| D1 | 62.9mm |
| r1r2 min | 1.5mm |
| da min | 34mm |
| Da max | 71mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.035 |
| Calc factor | 12 |
