SKU: 6405-NTN

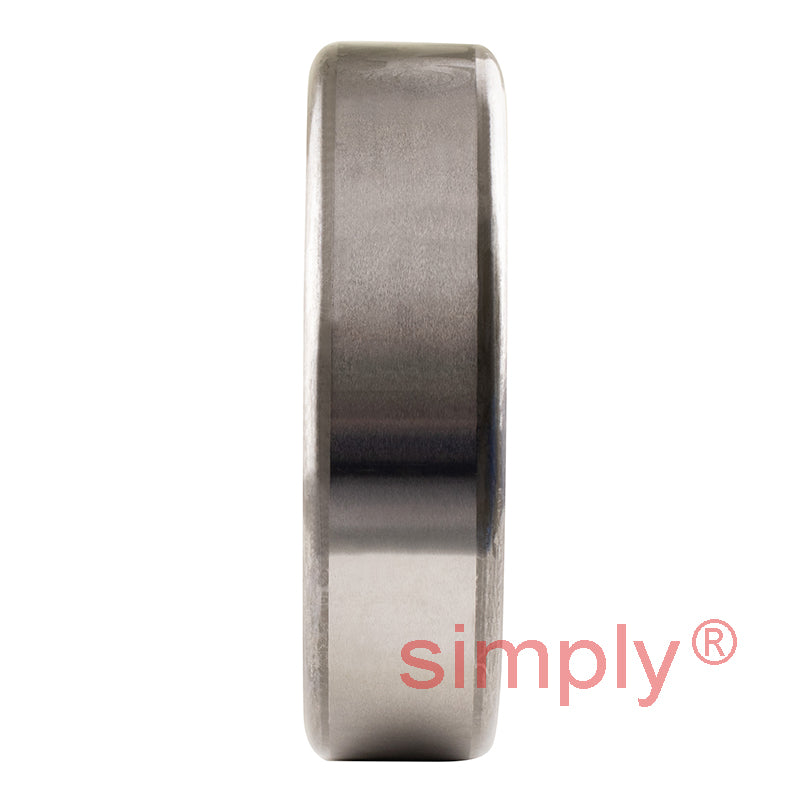

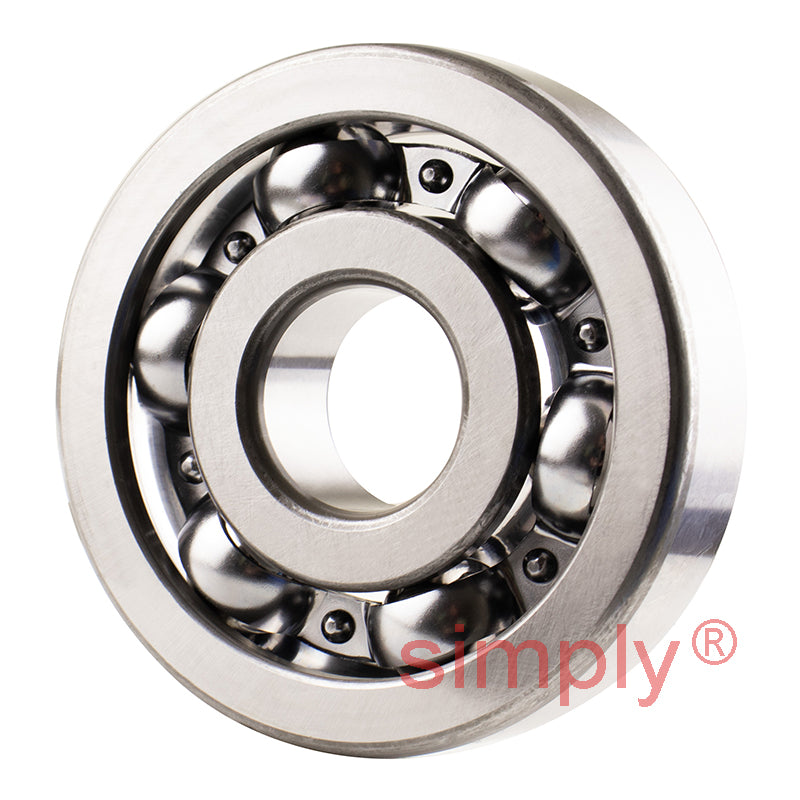

NTN 6405 Open Type Deep Groove Ball Bearing 25x80x21mm
NTN 6405 Open Type Deep Groove Ball Bearing 25x80x21mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
Equivalent to: 6405CM 405K 1405 405S 6405 3405 3C
In stock
Price Break
3+
CHF 35.67
5+
CHF 33.67
10+
CHF 33.27
25+
CHF 32.87
49+
CHF 32.46
74+
CHF 32.06
99+
CHF 30.06
199+
CHF 29.66
249+
CHF 29.26
499+
CHF 28.86
999+
CHF 28.06
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6405CM 405K 1405 405S 6405 3405 3C
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 80mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 38.5 kN |
| C<sub>or</sub> | 17.5 kN |
| C<sub>u</sub> | 1.36 kN |
| f<sub>0</sub> | 11.6 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 33mm |
| D<sub>a</sub> Max. | 72mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.53 kg |
