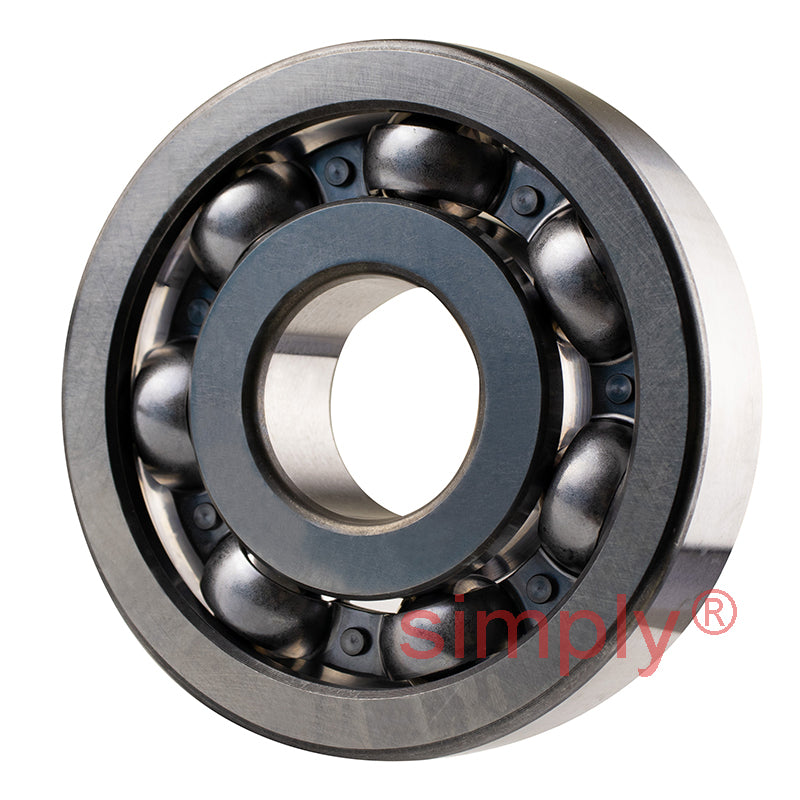

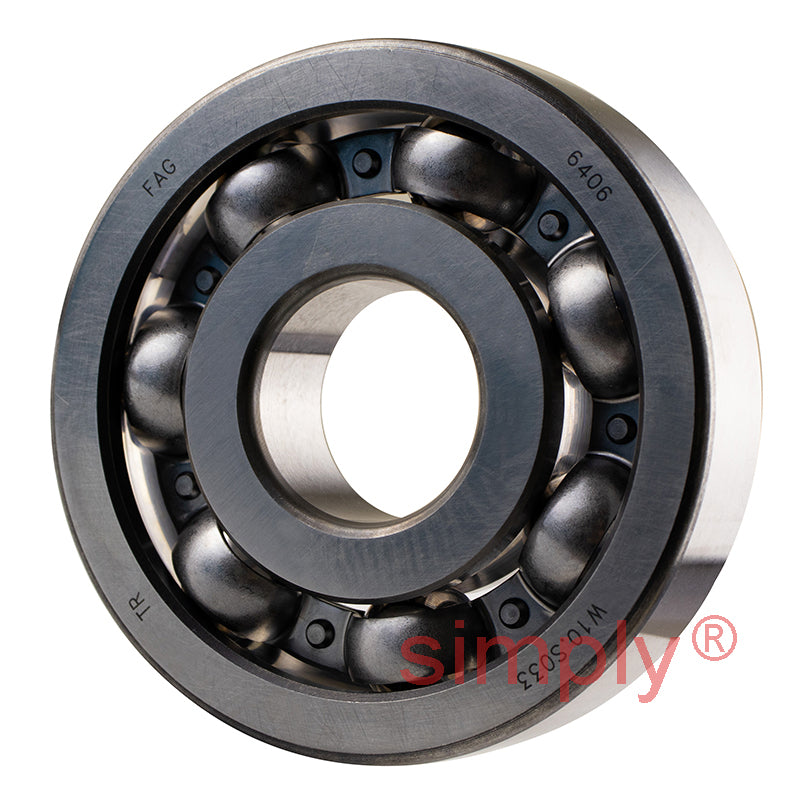

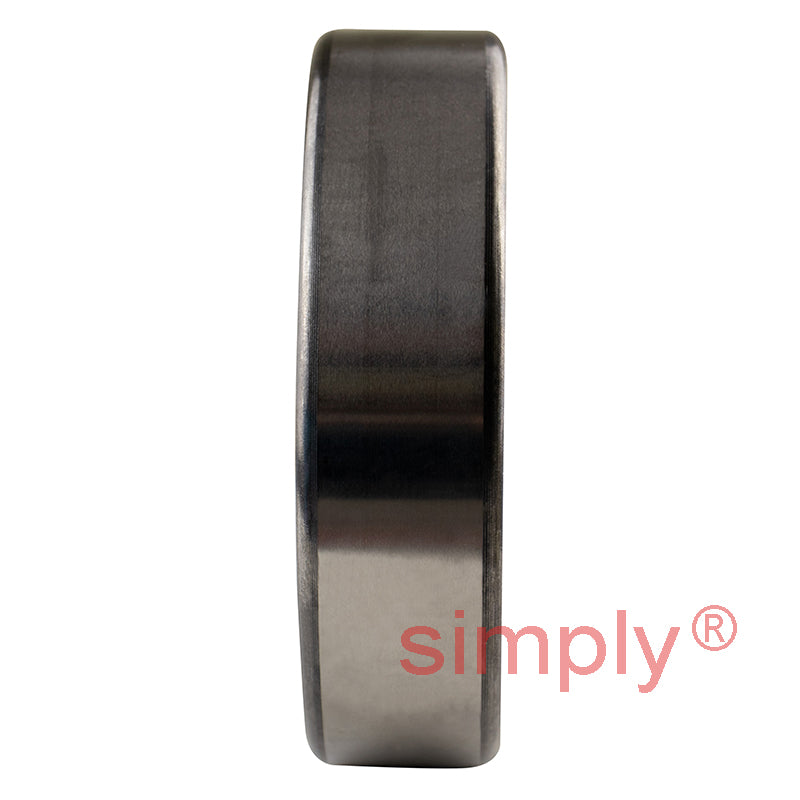

FAG 6406 Open Deep Groove Ball Bearing 30x90x23mm
FAG 6406 Open Deep Groove Ball Bearing 30x90x23mm
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
In stock
Price Break
10+
CHF 37.72
19+
CHF 35.60
29+
CHF 35.18
39+
CHF 34.75
49+
CHF 34.33
74+
CHF 33.90
99+
CHF 31.79
199+
CHF 31.36
249+
CHF 30.94
499+
CHF 30.51
999+
CHF 29.67
Share this product
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 23.6 kN |
| Fatigue load limit Pu | 1 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.74 kg |
| d1 | 50.3mm |
| D1 | 69.7mm |
| r1r2 min | 1.5mm |
| da min | 41mm |
| Da max | 79mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.035 |
| Calc factor | 12 |
