SKU: 6407/C3-FAG

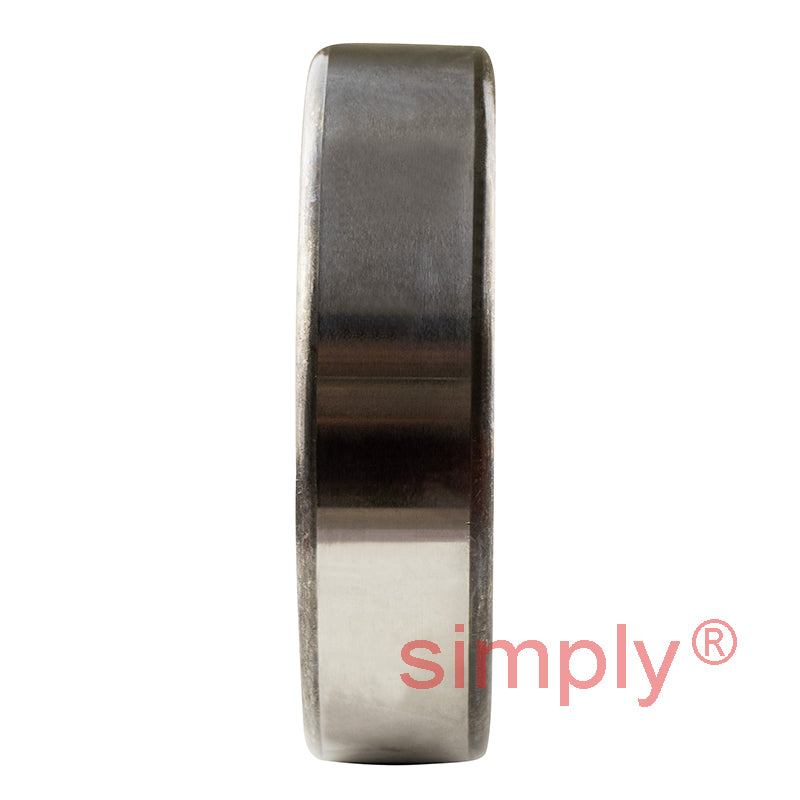

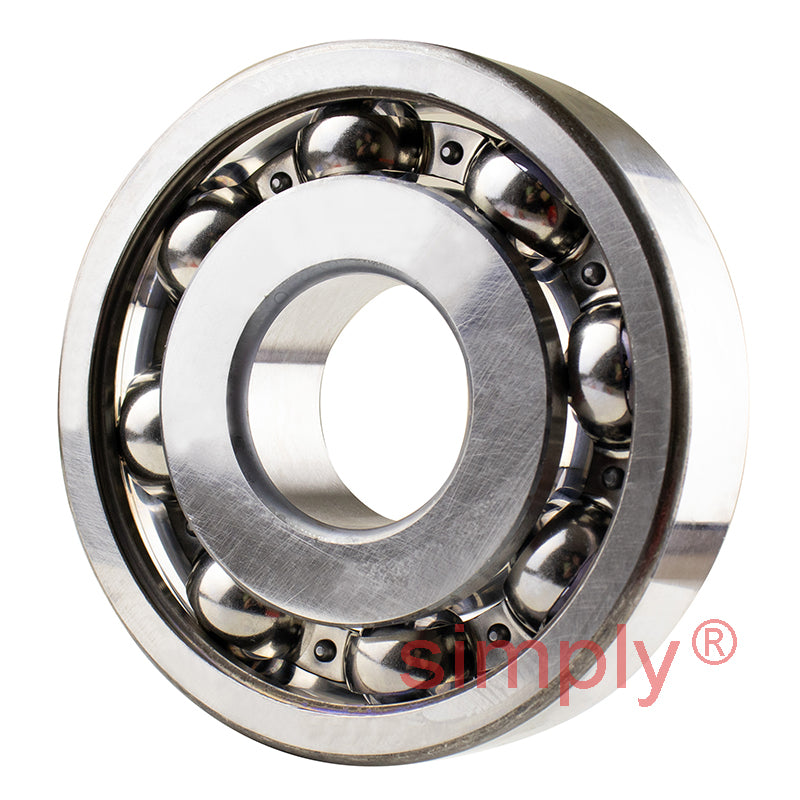

FAG 6407C3 Open Deep Groove Ball Bearing 35x100x25mm
FAG 6407C3 Open Deep Groove Ball Bearing 35x100x25mm
Regular price
CHF 58.00
ex VAT
Regular price
Sale price
CHF 58.00
ex VAT
Equivalent to: 6407 6407C3
In stock
Price Break
10+
CHF 45.53
19+
CHF 42.97
29+
CHF 42.46
39+
CHF 41.95
49+
CHF 41.44
74+
CHF 40.93
99+
CHF 38.37
199+
CHF 37.86
249+
CHF 37.35
499+
CHF 36.84
999+
CHF 35.81
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6407 6407C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.29 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 10000 rpm |
| Mass | 0.95 kg |
| d1 | 57.4mm |
| D1 | 79.5mm |
| r1r2 min | 1.5mm |
| da min | 46mm |
| Da max | 89mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.035 |
| Calc factor | 12 |
