SKU: 6411/C3-MB

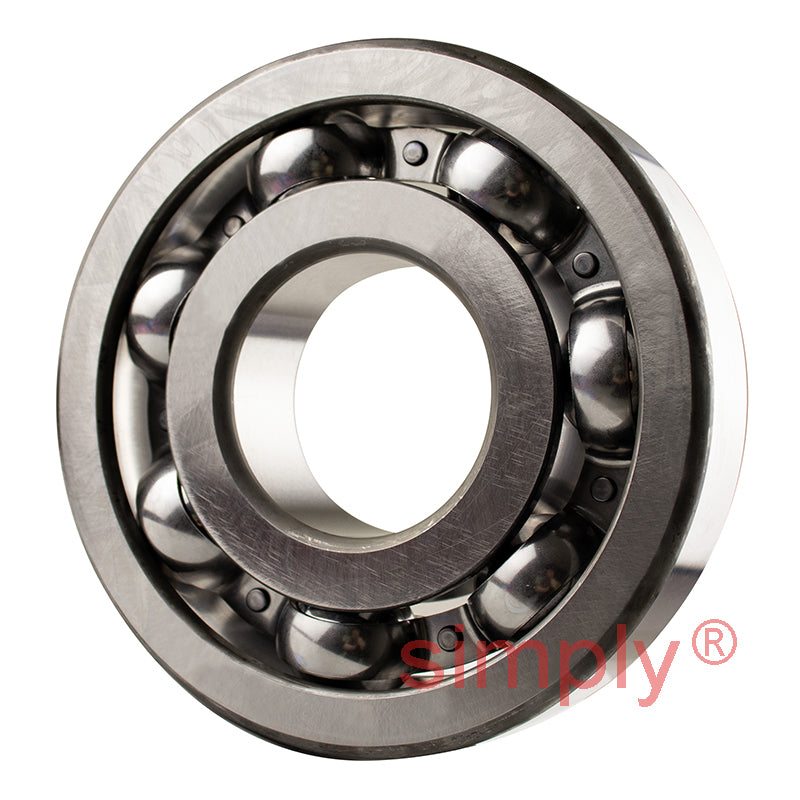

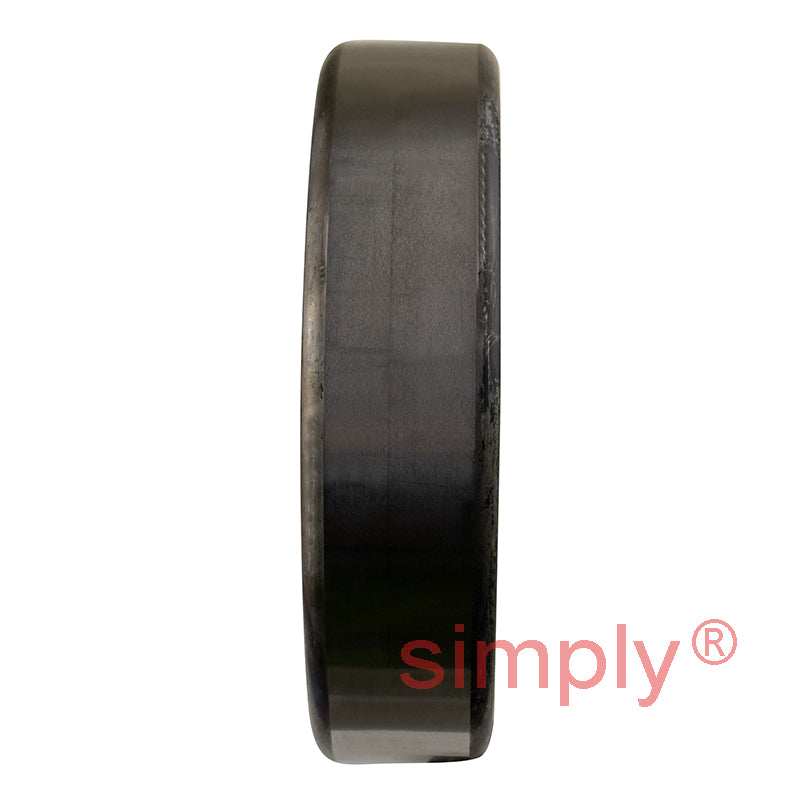

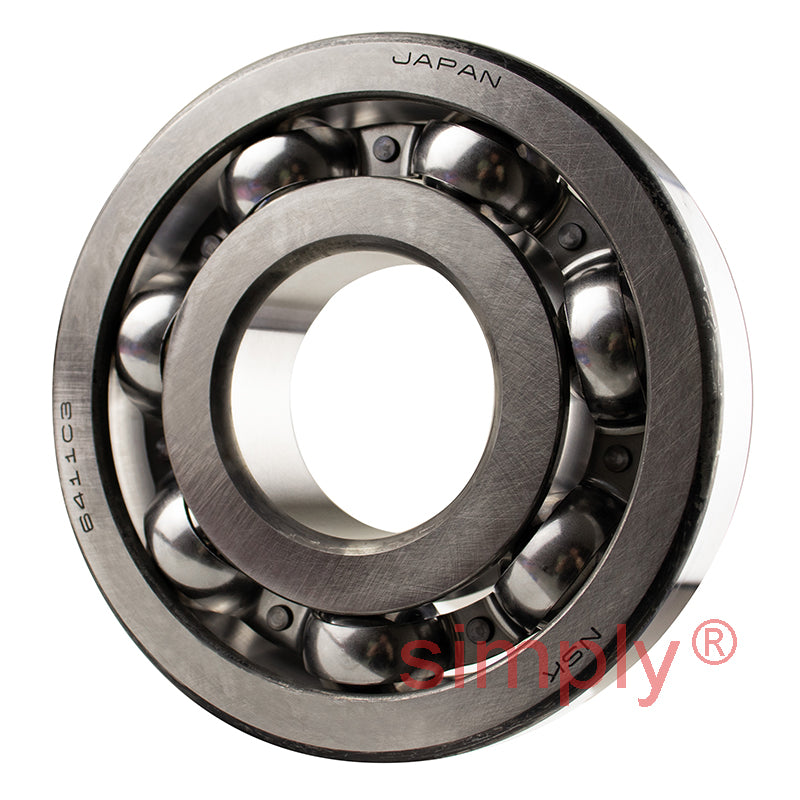

Major Brand 6411C3 Open Deep Groove Ball Bearing 55x140x33mm
Major Brand 6411C3 Open Deep Groove Ball Bearing 55x140x33mm
Regular price
CHF 85.00
ex VAT
Regular price
Sale price
CHF 85.00
ex VAT
Equivalent to: 6411 6411C3
In stock
Price Break
10+
CHF 67.55
19+
CHF 63.76
29+
CHF 63.00
39+
CHF 62.24
49+
CHF 61.48
74+
CHF 60.72
99+
CHF 56.93
199+
CHF 56.17
249+
CHF 55.41
499+
CHF 54.65
999+
CHF 53.13
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6411 6411C3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 99.5 kN |
| Static load Co | 62 kN |
| Fatigue load limit Pu | 2.6 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 2.3 kg |
| d1 | 81.6mm |
| D1 | 113mm |
| r1r2 min | 2.1mm |
| da min | 69mm |
| Da max | 126mm |
| ra max | 2mm |
| Calc factor Kr | 0.035 |
| Calc factor | 12 |
