SKU: 6411-MB

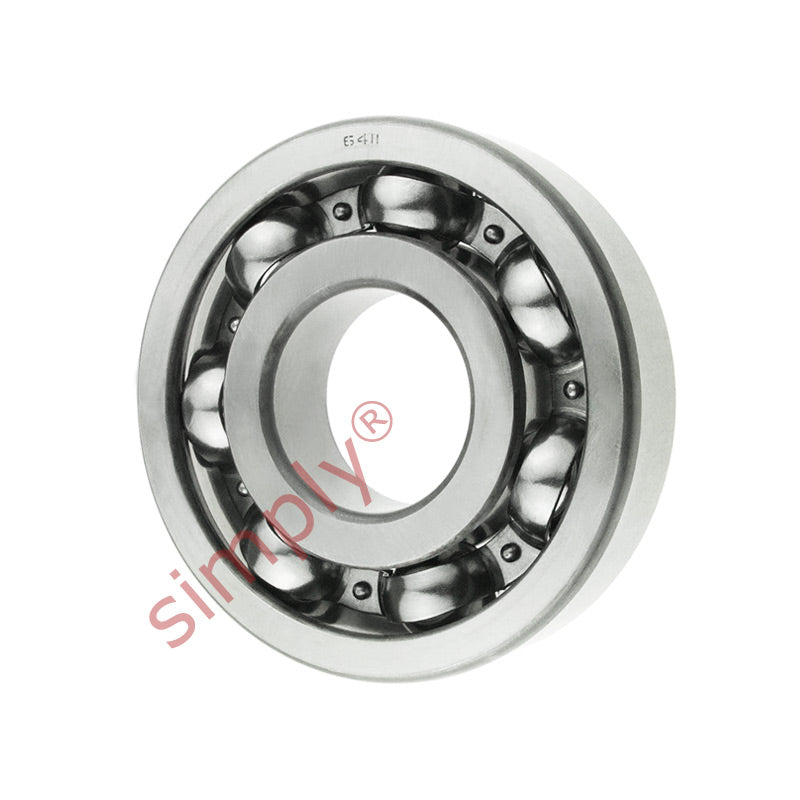

Major Brand 6411 Open Deep Groove Ball Bearing 55x140x33mm
Major Brand 6411 Open Deep Groove Ball Bearing 55x140x33mm
Regular price
CHF 118.00
ex VAT
Regular price
Sale price
CHF 118.00
ex VAT
In stock
Price Break
10+
CHF 93.67
19+
CHF 88.41
29+
CHF 87.35
39+
CHF 86.30
49+
CHF 85.25
74+
CHF 84.20
99+
CHF 78.93
199+
CHF 77.88
249+
CHF 76.83
499+
CHF 75.78
999+
CHF 73.67
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 99.5 kN |
| Static load Co | 62 kN |
| Fatigue load limit Pu | 2.6 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 2.3 kg |
| d1 | 81.6mm |
| D1 | 113mm |
| r1r2 min | 2.1mm |
| da min | 69mm |
| Da max | 126mm |
| ra max | 2mm |
| Calc factor Kr | 0.035 |
| Calc factor | 12 |
