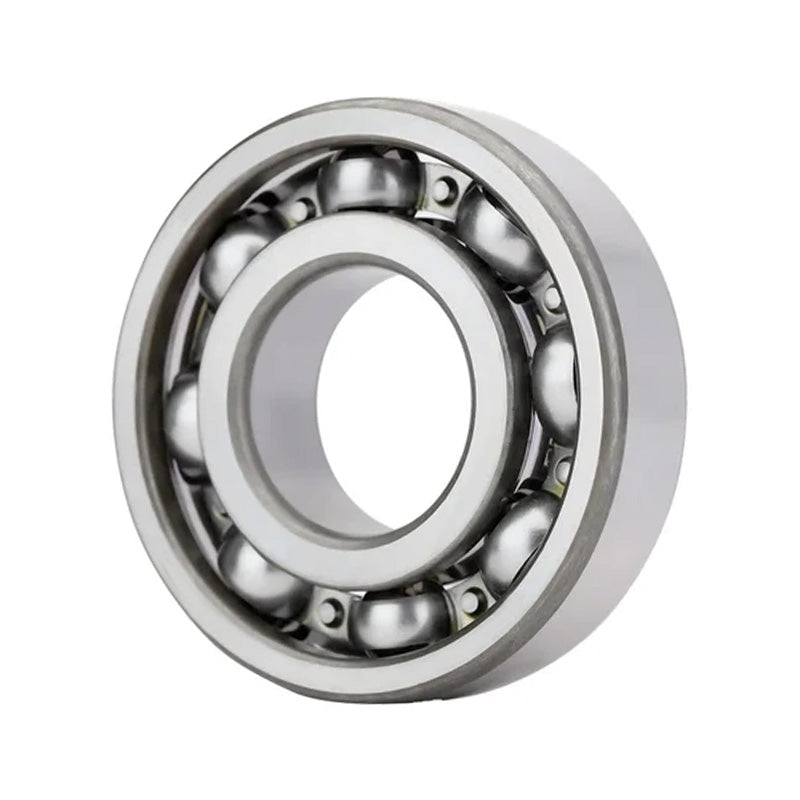

SKF 6413NR Open Type Snap Ring Deep Groove Bearing 65x160x37mm
SKF 6413NR Open Type Snap Ring Deep Groove Bearing 65x160x37mm
Regular price
CHF 459.73
ex VAT
Regular price
Sale price
CHF 459.73
ex VAT
In stock
Price Break
10+
CHF 409.16
19+
CHF 386.17
29+
CHF 381.58
39+
CHF 376.98
49+
CHF 372.38
74+
CHF 367.78
99+
CHF 344.80
199+
CHF 340.20
249+
CHF 335.60
499+
CHF 331.01
999+
CHF 321.81
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 65mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 3.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3.35kg |
| Snap ring | SP 160 |
| d1 | 94mm |
| D2 | 131mm |
| D3 | 155.22mm |
| D4 | 169.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 79mm |
| Da max | 146mm |
| Db min | 172mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.035 |
| fo | 12 |
