SKU: 6414/C3-SKF

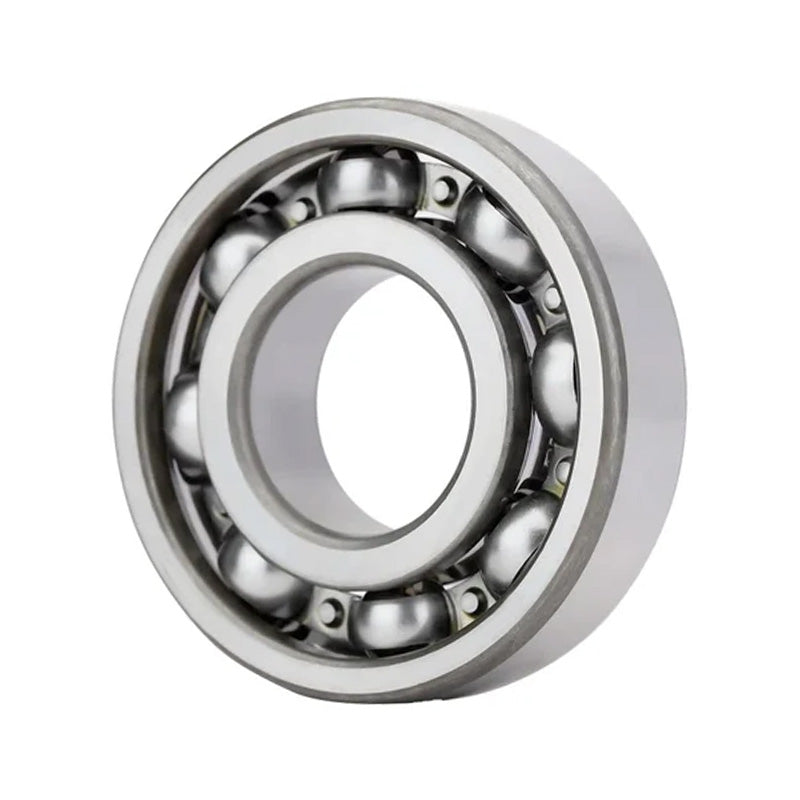

SKF 6414C3 Open Deep Groove Ball Bearing 70x180x42mm
SKF 6414C3 Open Deep Groove Ball Bearing 70x180x42mm
Regular price
CHF 383.41
ex VAT
Regular price
Sale price
CHF 383.41
ex VAT
In stock
Price Break
10+
CHF 341.23
19+
CHF 322.06
29+
CHF 318.23
39+
CHF 314.40
49+
CHF 310.56
74+
CHF 306.73
99+
CHF 287.56
199+
CHF 283.72
249+
CHF 279.89
499+
CHF 276.06
999+
CHF 268.39
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 180mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 180mm |
| B | 42mm |
| Dynamic load | 143 kN |
| Static load | 104 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 4.85 kg |
| d1 | 104mm |
| D1 | 146mm |
| D2 | n/amm |
| r1r2 min | 3mm |
| da min | 86mm |
| Da max | 164mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.035 |
| Calculation factor Cor | 12 |
