SKU: 6813-NTN

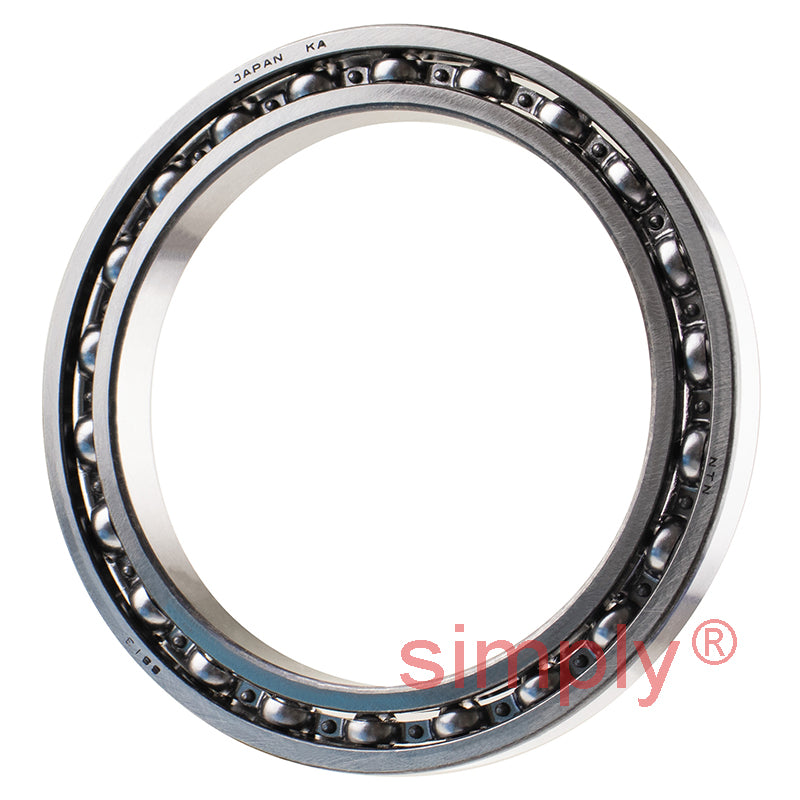

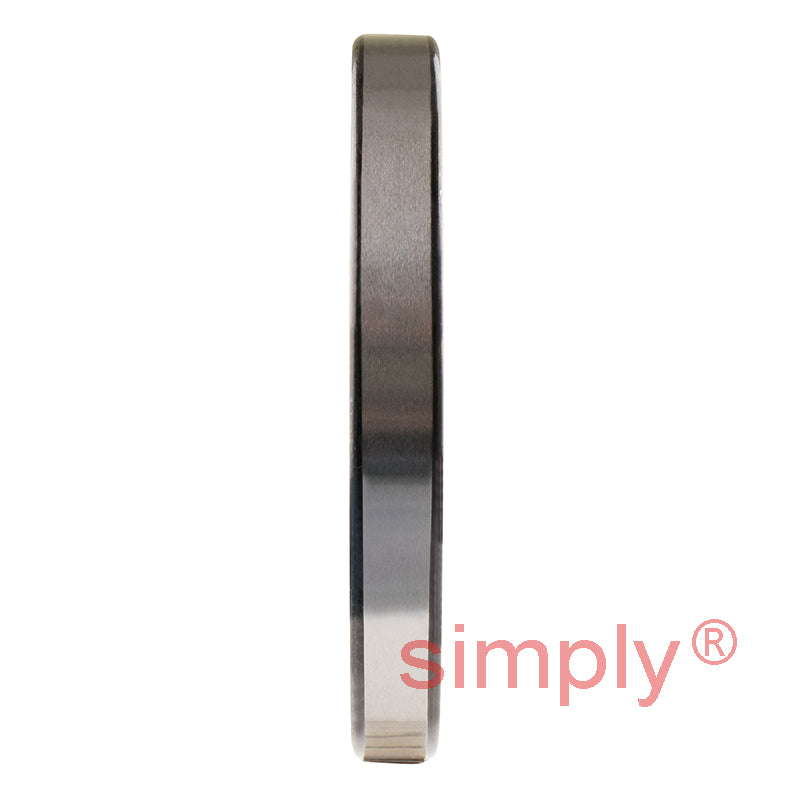

NTN 6813 Open Type Deep Groove Ball Bearing 65x85x10mm
NTN 6813 Open Type Deep Groove Ball Bearing 65x85x10mm
Regular price
CHF 109.00
ex VAT
Regular price
Sale price
CHF 109.00
ex VAT
Equivalent to: 6813CM 61813CM 61813T 61813 1813S 61813Y
In stock
Price Break
3+
CHF 86.63
5+
CHF 81.77
10+
CHF 80.79
25+
CHF 79.82
49+
CHF 78.85
74+
CHF 77.87
99+
CHF 73.01
199+
CHF 72.03
249+
CHF 71.06
499+
CHF 70.08
999+
CHF 68.14
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6813CM 61813CM 61813T 61813 1813S 61813Y
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 85mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.8 kN |
| C<sub>or</sub> | 11 kN |
| C<sub>u</sub> | 0.73 kN |
| f<sub>0</sub> | 16.2 kN |
| Grease | 7400 rpm |
| Oil | 8700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 69mm |
| D<sub>a</sub> Max. | 81mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.128 kg |
