SKU: 6816LLB/5K-NTN

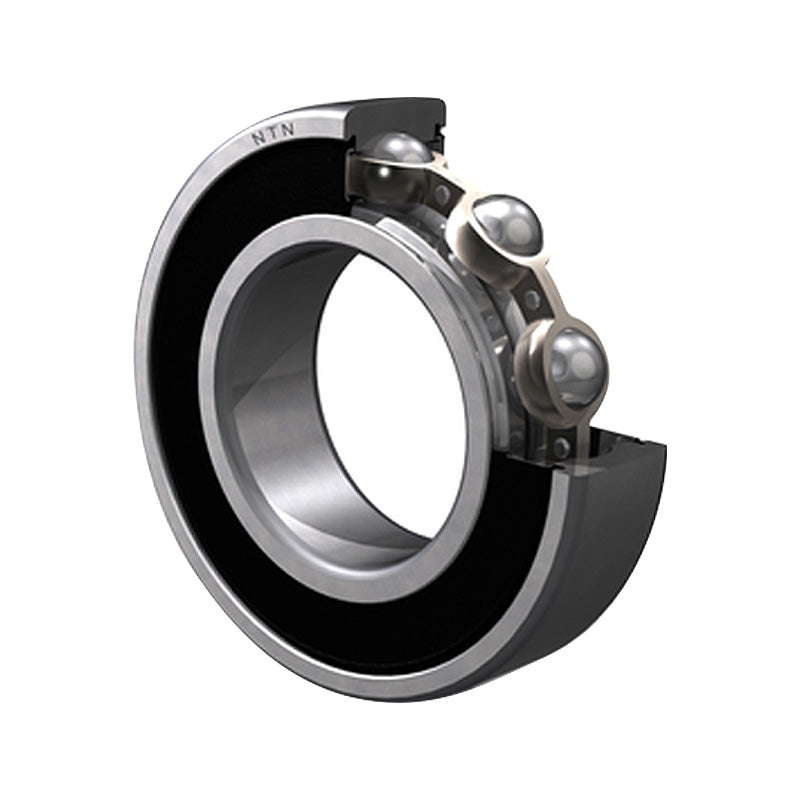

NTN 6816LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 80x100x10mm
NTN 6816LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 80x100x10mm
Regular price
CHF 178.01
ex VAT
Regular price
Sale price
CHF 178.01
ex VAT
Equivalent to: 6816LLBCM 61816LLBCM 6816LLB 61816LLB 68162NKE 6816VV 68162RSL 68162RZ
In stock
Price Break
10+
CHF 158.43
19+
CHF 149.53
29+
CHF 147.75
39+
CHF 145.97
49+
CHF 144.19
74+
CHF 142.41
99+
CHF 133.51
199+
CHF 131.73
249+
CHF 129.95
499+
CHF 128.17
999+
CHF 124.61
Couldn't load pickup availability
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6816LLBCM 61816LLBCM 6816LLB 61816LLB 68162NKE 6816VV 68162RSL 68162RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 100mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14 kN |
| C<sub>or</sub> | 13.3 kN |
| C<sub>u</sub> | 0.885 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 6000 rpm |
| Oil | 7100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 84mm |
| d<sub>a</sub> Max. | 85mm |
| D<sub>a</sub> Max. | 96mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.154 kg |
