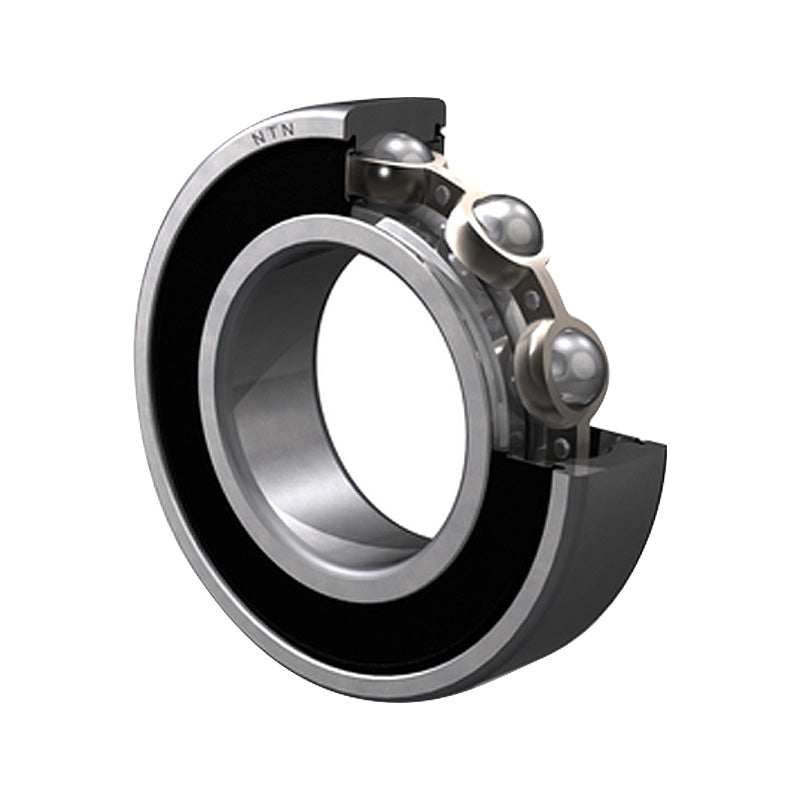

• NTN 6817LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 85x110x13mm
1 1

SKU: 6817LLB/5K-NTN

NTN 6817LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 85x110x13mm

NTN 6817LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 85x110x13mm
CHF 234.00 ex VAT
CHF 234.00 ex VAT
Sale Sold out

Equivalent to: 6817LLBCM 61817LLBCM 6817LLB 61817LLB 68172NKE 6817VV 68172RSL 68172RZ

In stock

Price Break
3+ CHF 185.86
5+ CHF 175.42
10+ CHF 173.33
25+ CHF 171.24
49+ CHF 169.15
74+ CHF 167.06
99+ CHF 156.62
199+ CHF 154.53
249+ CHF 152.45
499+ CHF 150.36
999+ CHF 146.18
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life


Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6817LLBCM 61817LLBCM 6817LLB 61817LLB 68172NKE 6817VV 68172RSL 68172RZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
110mm
Width:
13mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 85mm
D 110mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 20.7 kN
C<sub>or</sub> 19 kN
C<sub>u</sub> 1.26 kN
f<sub>0</sub> 16.2 kN
Grease 5700 rpm
Oil 6700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 90mm
d<sub>a</sub> Max. 91mm
D<sub>a</sub> Max. 105mm
r<sub>as</sub> Max. 1mm
Weight 0.27 kg
