SKU: 6818-NTN

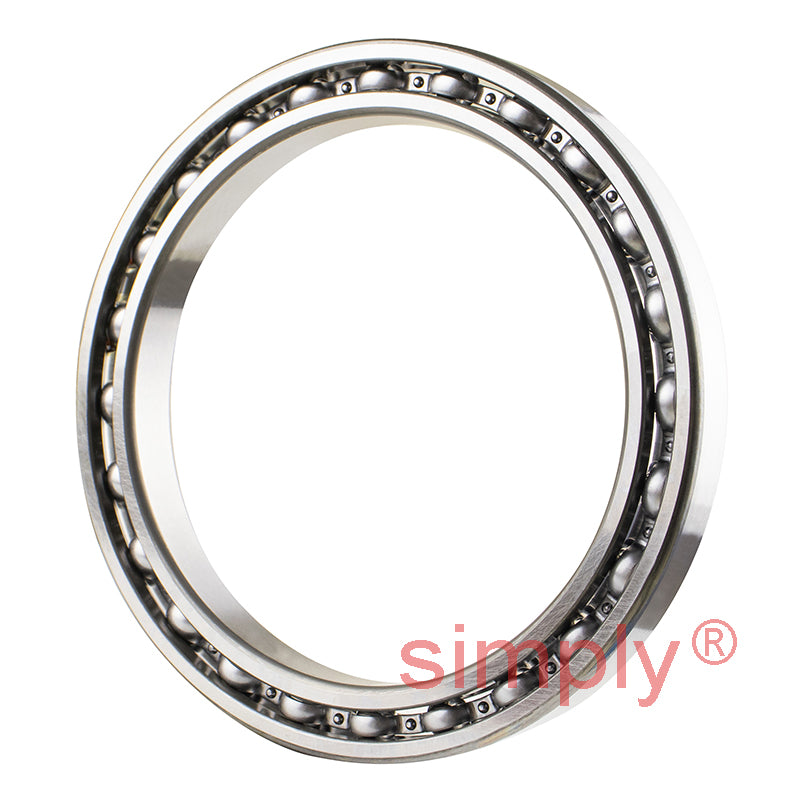

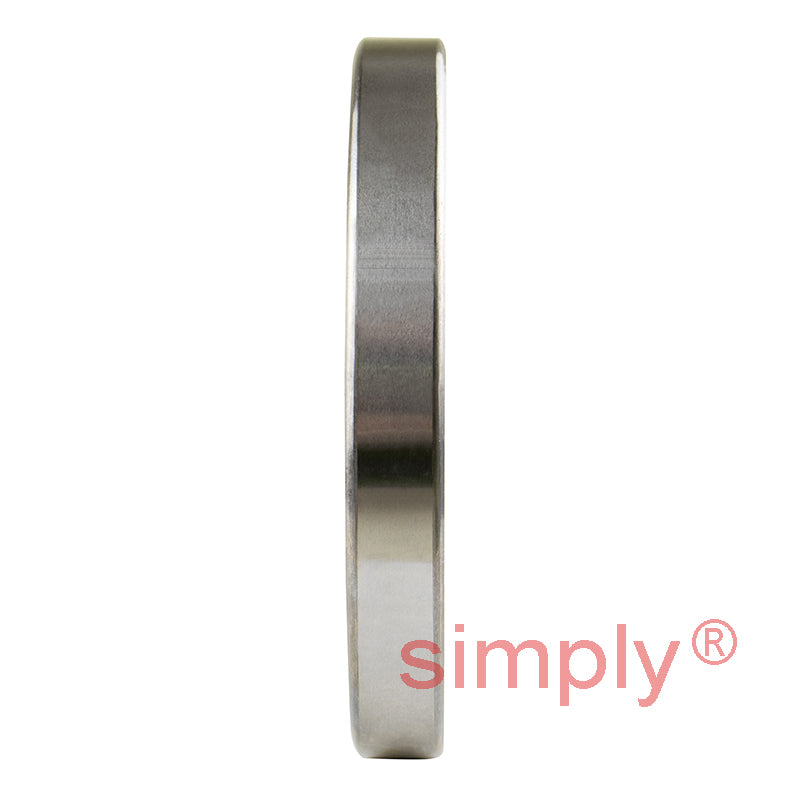

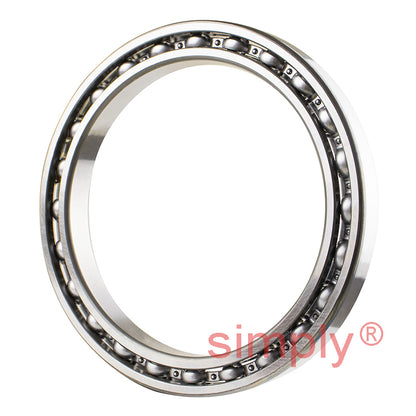

NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
Regular price
CHF 182.00
ex VAT
Regular price
Sale price
CHF 182.00
ex VAT
Equivalent to: 6818CM 61818CM 61818T 61818 1818S 61818Y
In stock
Price Break
3+
CHF 144.87
5+
CHF 136.73
10+
CHF 135.10
25+
CHF 133.47
49+
CHF 131.84
74+
CHF 130.22
99+
CHF 122.08
199+
CHF 120.45
249+
CHF 118.82
499+
CHF 117.19
999+
CHF 113.94
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6818CM 61818CM 61818T 61818 1818S 61818Y
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 115mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 115mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.1 kN |
| C<sub>or</sub> | 19.7 kN |
| C<sub>u</sub> | 1.3 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 5400 rpm |
| Oil | 6300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 95mm |
| D<sub>a</sub> Max. | 110mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.285 kg |
