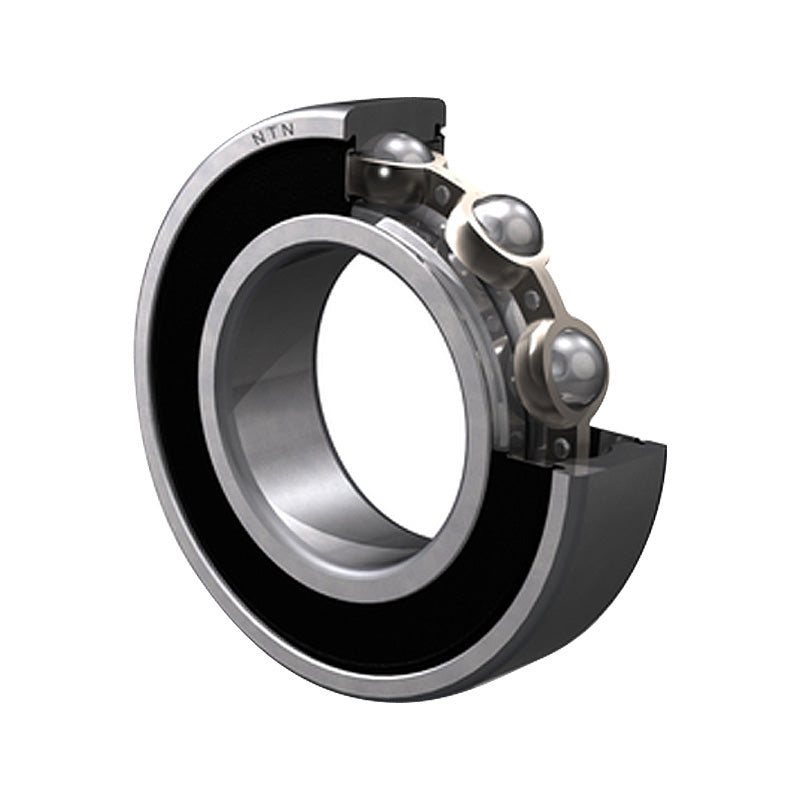

• NTN 6818LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 90x115x13mm
1 1

SKU: 6818LLB/2AS-NTN

NTN 6818LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 90x115x13mm

NTN 6818LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 90x115x13mm
CHF 269.00 ex VAT
CHF 269.00 ex VAT
Sale Sold out

Equivalent to: 6818LLBCM 61818LLBCM 6818LLB 61818LLB 68182NKE 6818VV 68182RSL 68182RZ

In stock

Price Break
3+ CHF 213.94
5+ CHF 201.92
10+ CHF 199.52
25+ CHF 197.11
49+ CHF 194.71
74+ CHF 192.30
99+ CHF 180.29
199+ CHF 177.88
249+ CHF 175.48
499+ CHF 173.07
999+ CHF 168.27
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life


Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6818LLBCM 61818LLBCM 6818LLB 61818LLB 68182NKE 6818VV 68182RSL 68182RZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
90mm
Outside Diameter:
115mm
Width:
13mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 90mm
D 115mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 21.1 kN
C<sub>or</sub> 19.7 kN
C<sub>u</sub> 1.3 kN
f<sub>0</sub> 16.1 kN
Grease 5400 rpm
Oil 6300 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 95mm
d<sub>a</sub> Max. 96mm
D<sub>a</sub> Max. 110mm
r<sub>as</sub> Max. 1mm
Weight 0.285 kg
