SKU: 6820LLB/5K-NTN

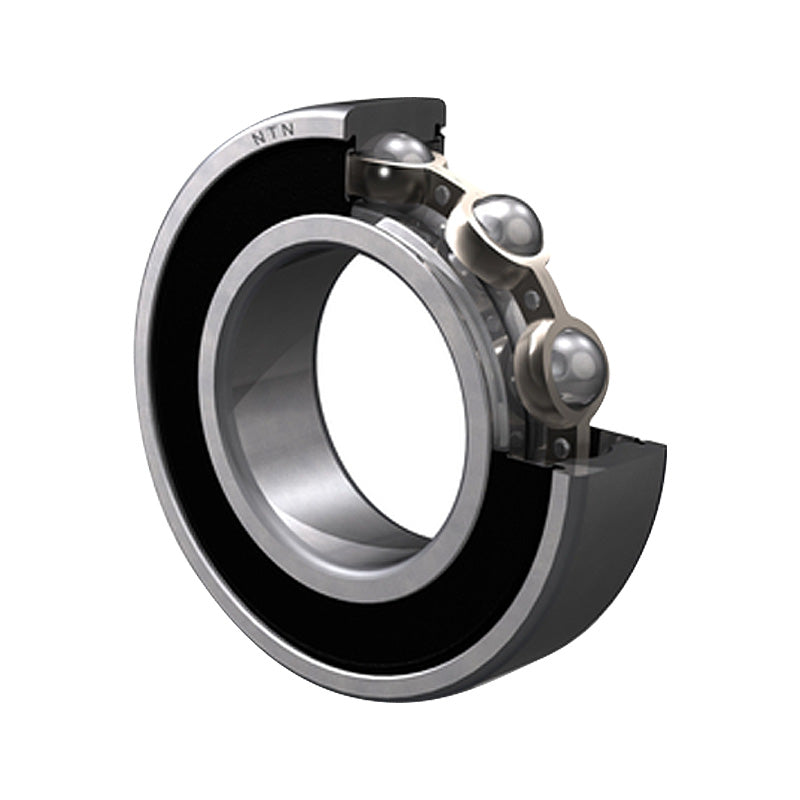

NTN 6820LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 100x125x13mm
NTN 6820LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 100x125x13mm
Regular price
CHF 305.73
ex VAT
Regular price
Sale price
CHF 305.73
ex VAT
Equivalent to: 6820LLBCM 61820LLBCM 6820LLB 61820LLB 68202NKE 6820VV 68202RSL 68202RZ
In stock
Price Break
10+
CHF 272.10
19+
CHF 256.81
29+
CHF 253.76
39+
CHF 250.70
49+
CHF 247.64
74+
CHF 244.58
99+
CHF 229.30
199+
CHF 226.24
249+
CHF 223.18
499+
CHF 220.13
999+
CHF 214.01
Couldn't load pickup availability
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6820LLBCM 61820LLBCM 6820LLB 61820LLB 68202NKE 6820VV 68202RSL 68202RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 125mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.7 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.33 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 4800 rpm |
| Oil | 5600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 105mm |
| d<sub>a</sub> Max. | 106mm |
| D<sub>a</sub> Max. | 120mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.313 kg |
