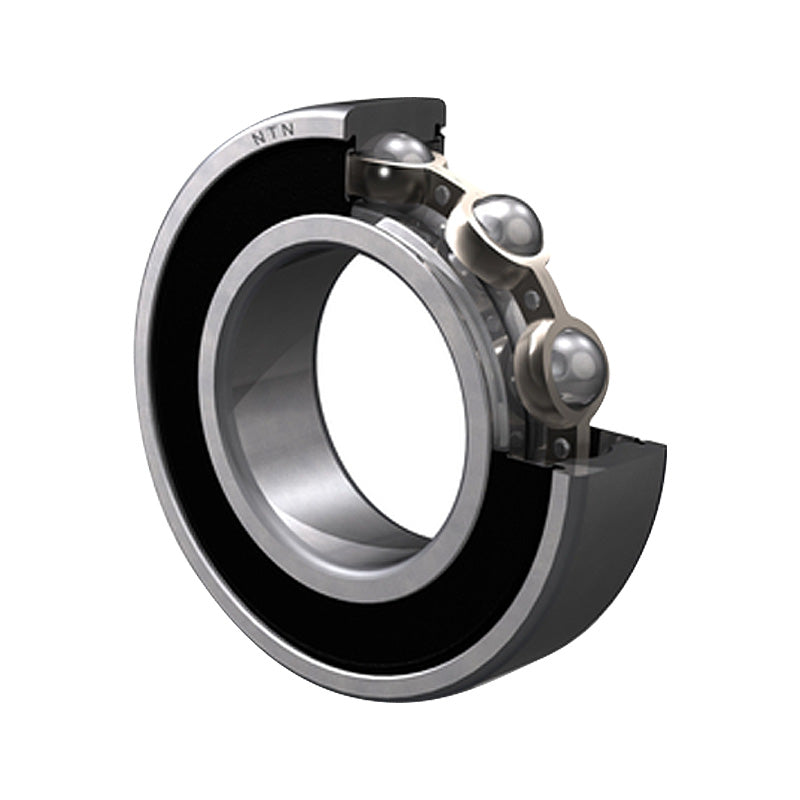

• NTN 6822LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 110x140x16mm
1 1

SKU: 6822LLB/5K-NTN

NTN 6822LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 110x140x16mm

NTN 6822LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 110x140x16mm
CHF 353.00 ex VAT
CHF 353.00 ex VAT
Sale Sold out

Equivalent to: 6822LLBCM 61822LLBCM 6822LLB 61822LLB 68222NKE 6822VV 68222RSL 68222RZ

In stock

Price Break
3+ CHF 281.14
5+ CHF 265.35
10+ CHF 262.19
25+ CHF 259.03
49+ CHF 255.87
74+ CHF 252.71
99+ CHF 236.92
199+ CHF 233.76
249+ CHF 230.60
499+ CHF 227.44
999+ CHF 221.12
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life


Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6822LLBCM 61822LLBCM 6822LLB 61822LLB 68222NKE 6822VV 68222RSL 68222RZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
110mm
Outside Diameter:
140mm
Width:
16mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 110mm
D 140mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 27.5 kN
C<sub>or</sub> 28.2 kN
C<sub>u</sub> 1.68 kN
f<sub>0</sub> 16 kN
Grease 4300 rpm
Oil 5100 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 115mm
d<sub>a</sub> Max. 118mm
D<sub>a</sub> Max. 135mm
r<sub>as</sub> Max. 1mm
Weight 0.515 kg
