SKU: 683/672B-TIM

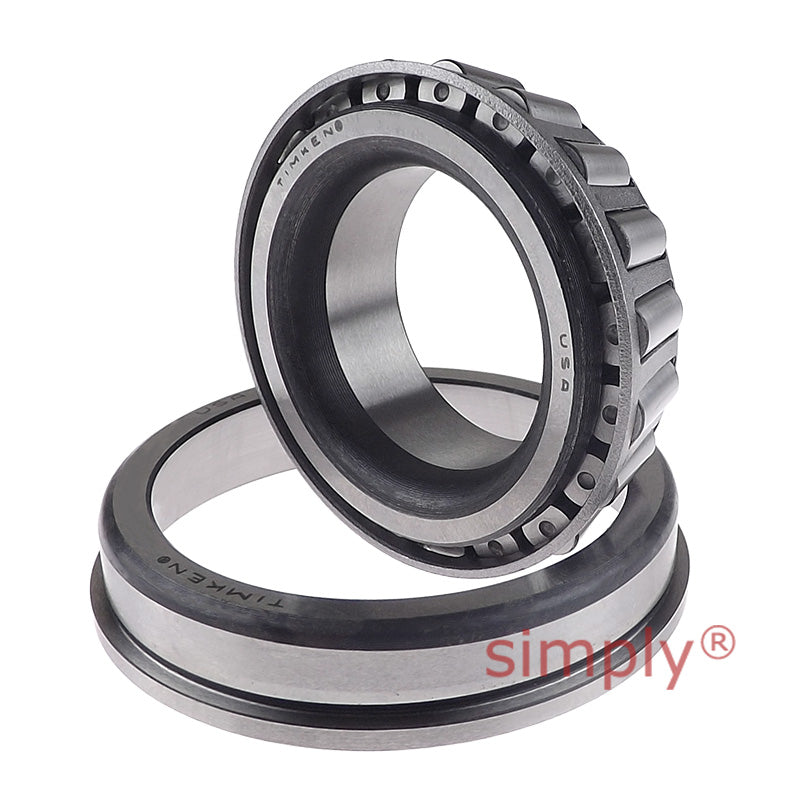

Timken 683/672B TSF Single-Row Taper Roller Bearing 3.75x6.625x1.625 inch
Timken 683/672B TSF Single-Row Taper Roller Bearing 3.75x6.625x1.625 inch
Regular price
CHF 510.00
ex VAT
Regular price
Sale price
CHF 510.00
ex VAT
In stock
Price Break
10+
CHF 405.86
20+
CHF 383.06
30+
CHF 378.50
40+
CHF 373.94
50+
CHF 369.38
75+
CHF 364.82
100+
CHF 342.02
200+
CHF 337.46
250+
CHF 332.89
500+
CHF 328.33
1000+
CHF 319.21
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Outside Diameter:
- 168.28mm = 6.625 (6-5/8) inch
- Width:
- 41.28mm = 1.625 (1-5/8) inch
Technical
Technical
| d | 95.25mm = 3.75 inch |
|---|---|
| D | 168.275mm = 6.625 inch |
| T1 | 18.255mm = 0.7187 inch |
| Dynamic (1) C1 | 245000N |
| Factors (5) e | 0.47 |
| Factors (5) Y | 1.28 |
| Dynamic (2) C90 | 63500N |
| Dynamic (2) Ca90 | 51200N |
| Factors (5) K | 1.24 |
| Static Co | 386000N |
| Bearing B | 41.275mm = 1.625 inch |
| Bearing C | 30.162mm = 1.1875 inch |
| Bearing a(3) | -2.8mm = -0.11 inch |
| Bearing D1 | 175.336mm = 6.903 inch |
| Bearing C2 | 7.142mm = 0.2812 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 106mm = 4.17 inch |
| Shaft backing shoulder diameter db | 113mm = 4.45 inch |
| Housing backing shoulder diameter Da | 160mm = 6.3 inch |
| G1 | 182 |
| G2 | 37.2 |
| Cg | 0.1056 |
