SKU: 6904-NTN

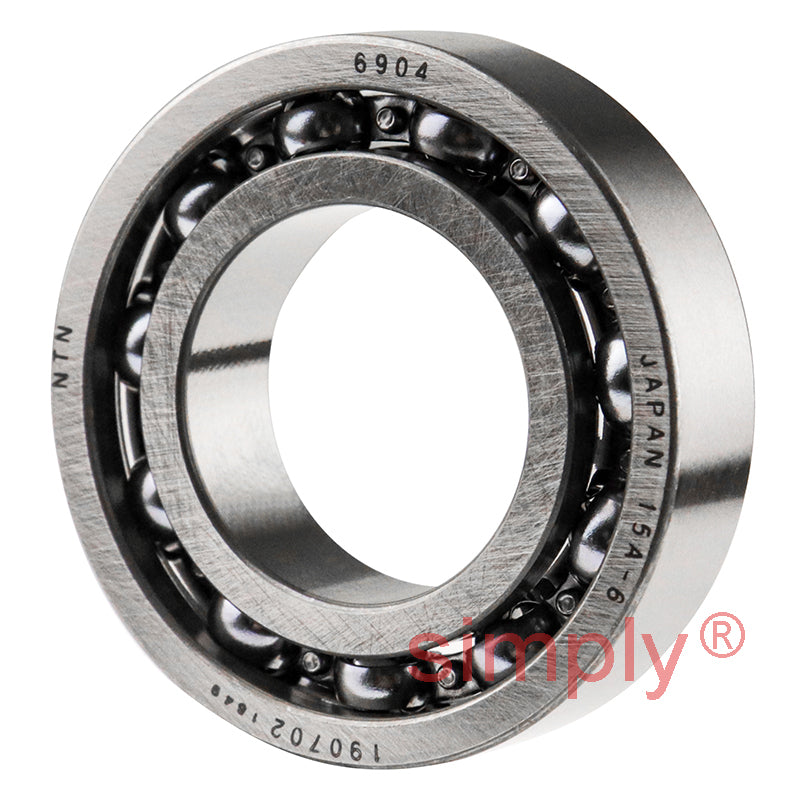

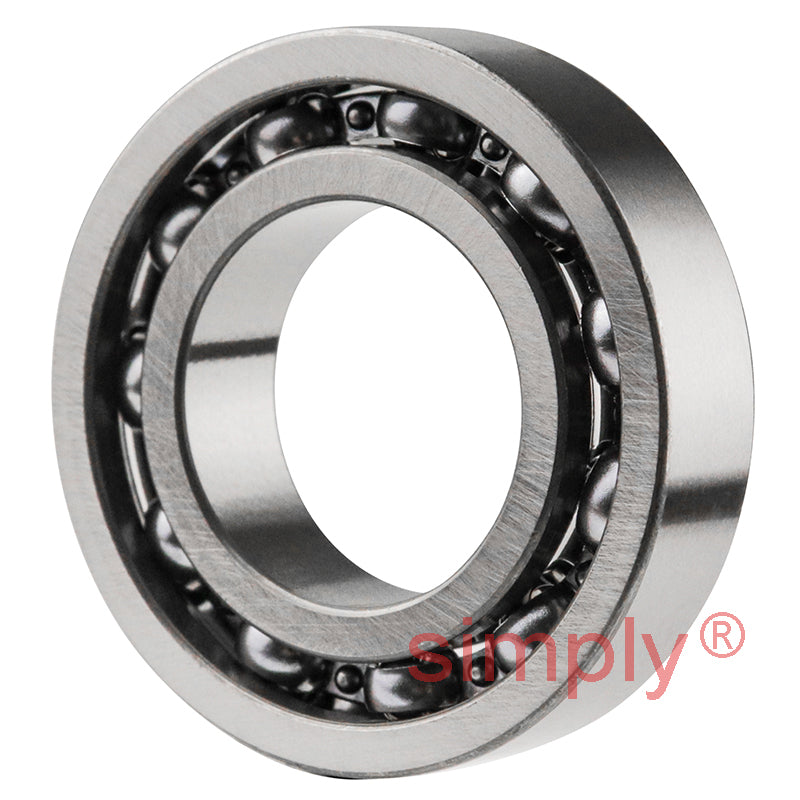

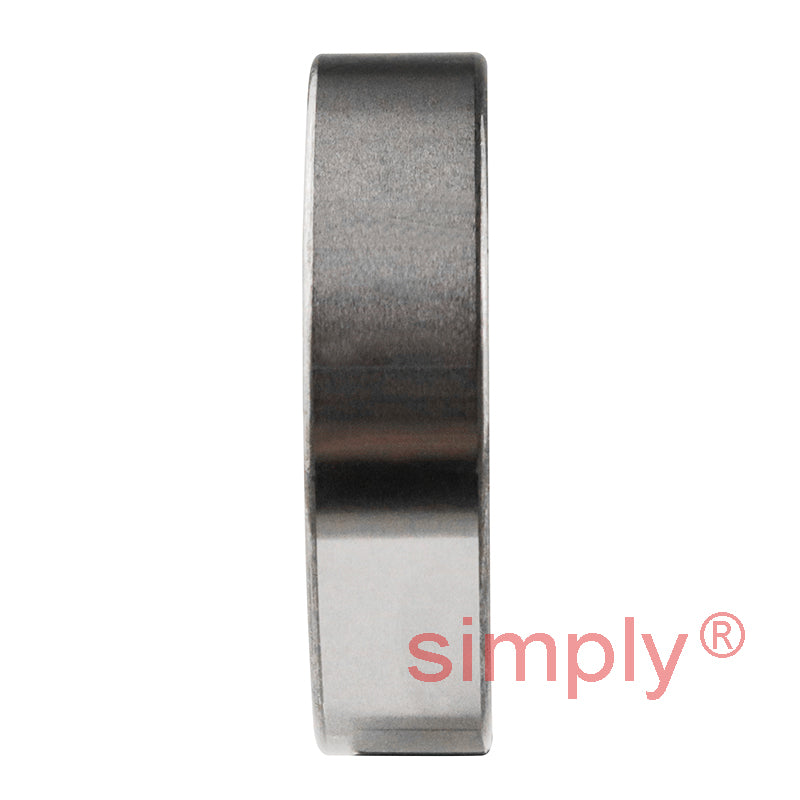

NTN 6904 Open Type Deep Groove Ball Bearing 20x37x9mm
NTN 6904 Open Type Deep Groove Ball Bearing 20x37x9mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
Equivalent to: 6904CM 61904CM 9304K 61904 61904S AY20
In stock
Price Break
3+
CHF 12.44
5+
CHF 11.74
10+
CHF 11.60
25+
CHF 11.46
49+
CHF 11.32
74+
CHF 11.18
99+
CHF 10.49
199+
CHF 10.35
249+
CHF 10.21
499+
CHF 10.07
999+
CHF 9.79
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6904CM 61904CM 9304K 61904 61904S AY20
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 37mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.05 kN |
| C<sub>or</sub> | 3.7 kN |
| C<sub>u</sub> | 0.288 kN |
| f<sub>0</sub> | 14.7 kN |
| Grease | 19000 rpm |
| Oil | 23000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 22mm |
| D<sub>a</sub> Max. | 35mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.036 kg |
