SKU: 6905-NTN

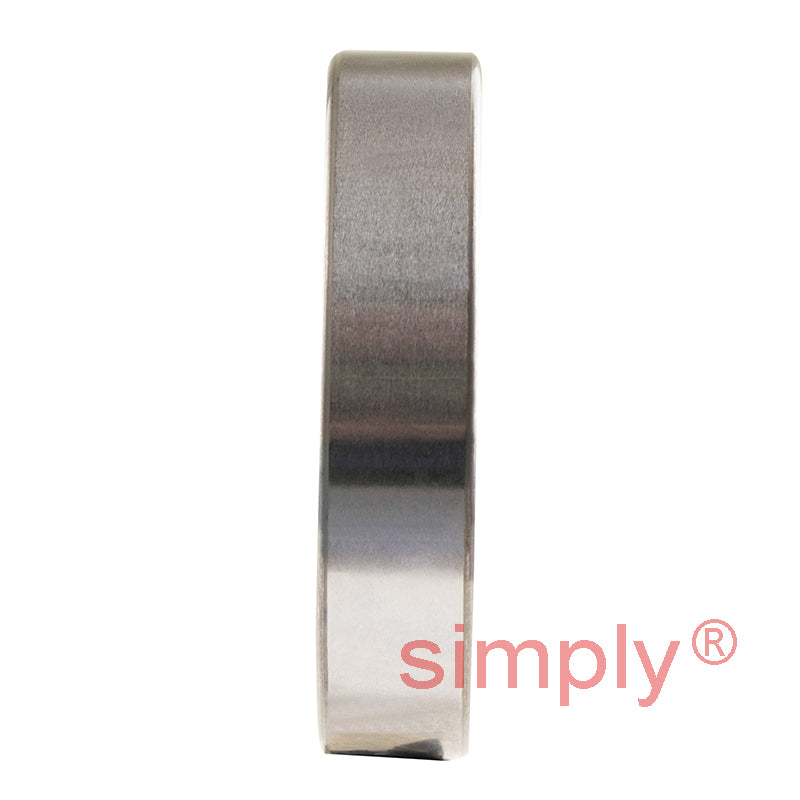

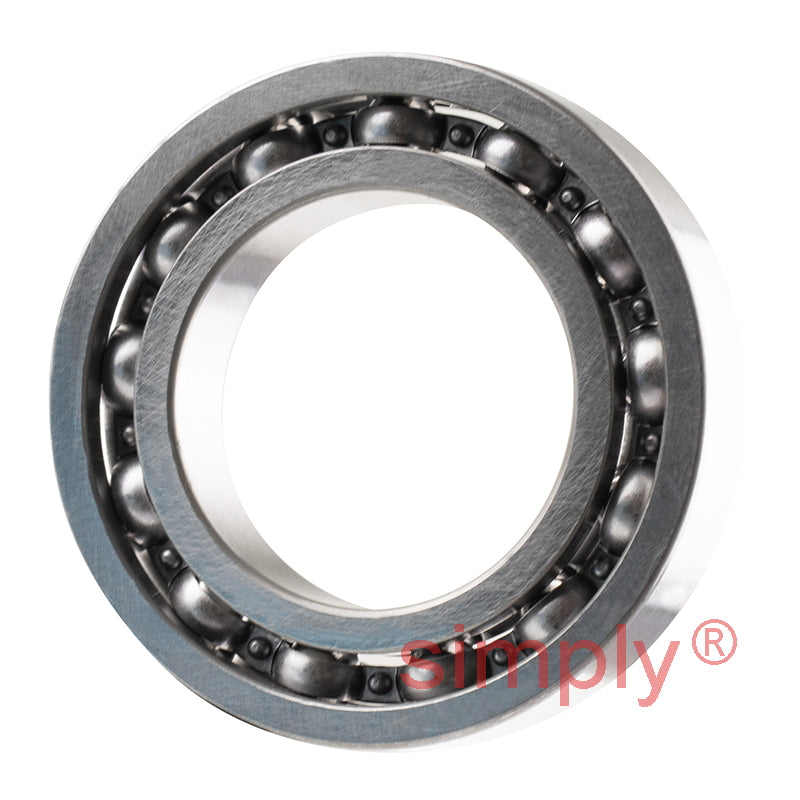

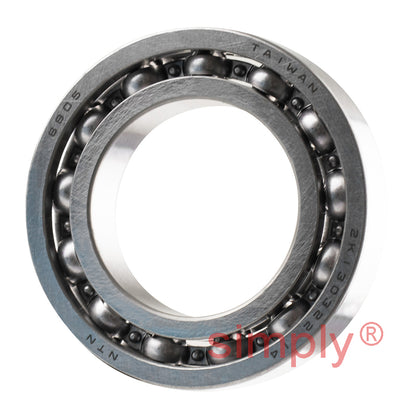

NTN 6905 Open Type Deep Groove Ball Bearing 25x42x9mm
NTN 6905 Open Type Deep Groove Ball Bearing 25x42x9mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: 6905CM 61905CM 9305K 61905 61905S AY25
In stock
Price Break
3+
CHF 13.94
5+
CHF 13.15
10+
CHF 13.00
25+
CHF 12.84
49+
CHF 12.68
74+
CHF 12.53
99+
CHF 11.75
199+
CHF 11.59
249+
CHF 11.43
499+
CHF 11.28
999+
CHF 10.96
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6905CM 61905CM 9305K 61905 61905S AY25
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 42mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.8 kN |
| C<sub>or</sub> | 4.55 kN |
| C<sub>u</sub> | 0.345 kN |
| f<sub>0</sub> | 15.4 kN |
| Grease | 16000 rpm |
| Oil | 19000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 27mm |
| D<sub>a</sub> Max. | 40mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.042 kg |
