SKU: 6910LLB/5K-NTN

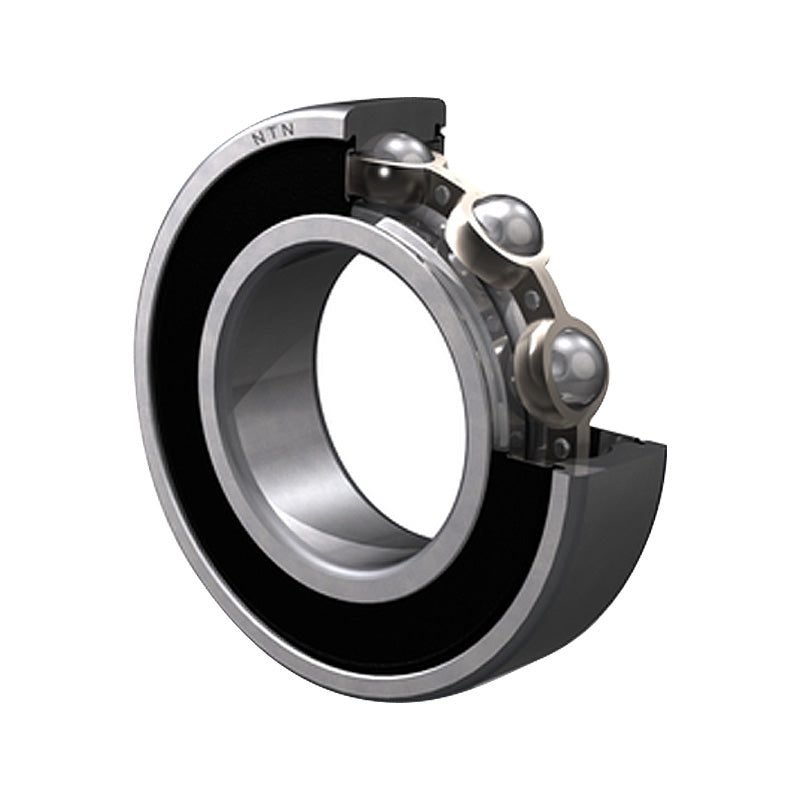

NTN 6910LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x72x12mm
NTN 6910LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x72x12mm
Regular price
CHF 108.12
ex VAT
Regular price
Sale price
CHF 108.12
ex VAT
Equivalent to: 6910LLBCM 61910LLBCM 6910LLB 61910LLB 69102NKE 6910VV 69102RSL 69102RZ
In stock
Price Break
10+
CHF 96.23
19+
CHF 90.82
29+
CHF 89.74
39+
CHF 88.66
49+
CHF 87.58
74+
CHF 86.50
99+
CHF 81.09
199+
CHF 80.01
249+
CHF 78.93
499+
CHF 77.85
999+
CHF 75.68
Couldn't load pickup availability
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6910LLBCM 61910LLBCM 6910LLB 61910LLB 69102NKE 6910VV 69102RSL 69102RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 72mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14.9 kN |
| C<sub>or</sub> | 11.2 kN |
| C<sub>u</sub> | 0.765 kN |
| f<sub>0</sub> | 16.3 kN |
| Grease | 8900 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 54mm |
| d<sub>a</sub> Max. | 55.5mm |
| D<sub>a</sub> Max. | 68mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.132 kg |
