SKU: 6912LLB/2AS-NTN

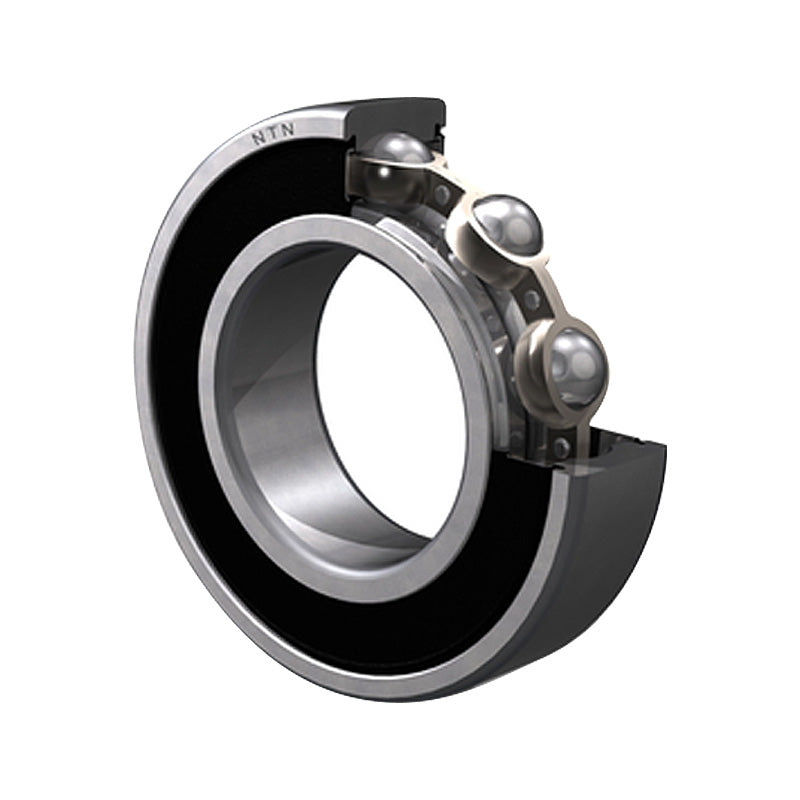

NTN 6912LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 60x85x13mm
NTN 6912LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 60x85x13mm
Regular price
CHF 58.00
ex VAT
Regular price
Sale price
CHF 58.00
ex VAT
Equivalent to: 6912LLBCM 61912LLBCM 6912LLB 61912LLB 69122NKE 6912VV 69122RSL 69122RZ
In stock
Price Break
3+
CHF 45.95
5+
CHF 43.37
10+
CHF 42.85
25+
CHF 42.34
49+
CHF 41.82
74+
CHF 41.30
99+
CHF 38.72
199+
CHF 38.21
249+
CHF 37.69
499+
CHF 37.17
999+
CHF 36.14
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6912LLBCM 61912LLBCM 6912LLB 61912LLB 69122NKE 6912VV 69122RSL 69122RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 13mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 85mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 18.2 kN |
| C<sub>or</sub> | 14.3 kN |
| C<sub>u</sub> | 0.965 kN |
| f<sub>0</sub> | 16.4 kN |
| Grease | 7600 rpm |
| Oil | 8900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 65mm |
| d<sub>a</sub> Max. | 66.5mm |
| D<sub>a</sub> Max. | 80mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.193 kg |
