SKU: 6915LLB/2AS-NTN

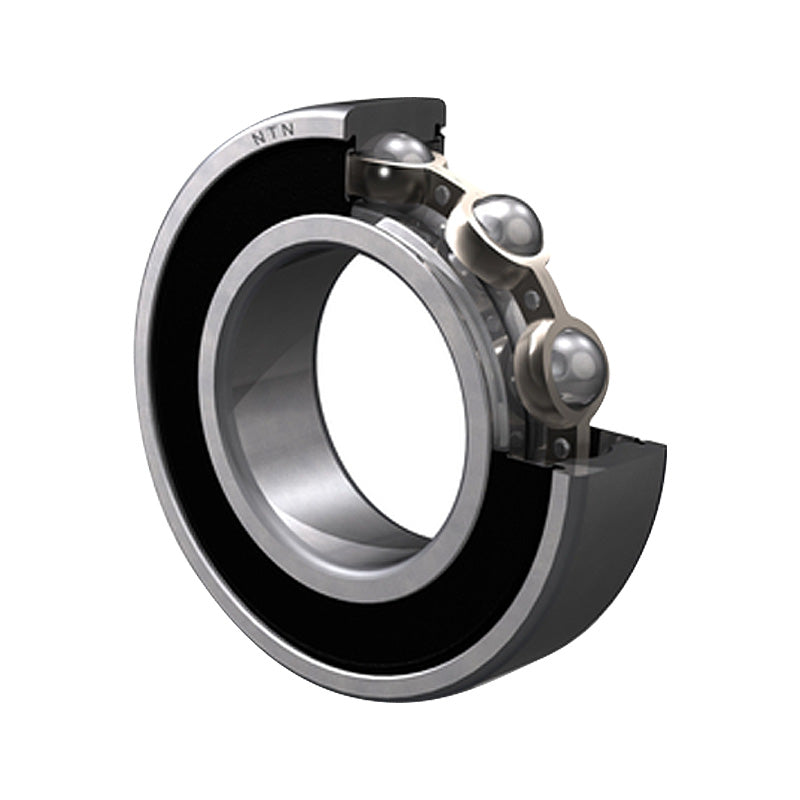

NTN 6915LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x105x16mm
NTN 6915LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x105x16mm
Regular price
CHF 75.55
ex VAT
Regular price
Sale price
CHF 75.55
ex VAT
Equivalent to: 6915LLBCM 61915LLBCM 6915LLB 61915LLB 69152NKE 6915VV 69152RSL 69152RZ
In stock
Price Break
10+
CHF 67.24
19+
CHF 63.46
29+
CHF 62.71
39+
CHF 61.95
49+
CHF 61.20
74+
CHF 60.44
99+
CHF 56.66
199+
CHF 55.91
249+
CHF 55.15
499+
CHF 54.40
999+
CHF 52.89
Couldn't load pickup availability
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6915LLBCM 61915LLBCM 6915LLB 61915LLB 69152NKE 6915VV 69152RSL 69152RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 16mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 105mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 27 kN |
| C<sub>or</sub> | 22.6 kN |
| C<sub>u</sub> | 1.52 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 6100 rpm |
| Oil | 7200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 80mm |
| d<sub>a</sub> Max. | 82.5mm |
| D<sub>a</sub> Max. | 100mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.353 kg |
