SKU: 6919LLU/2AS-NTN

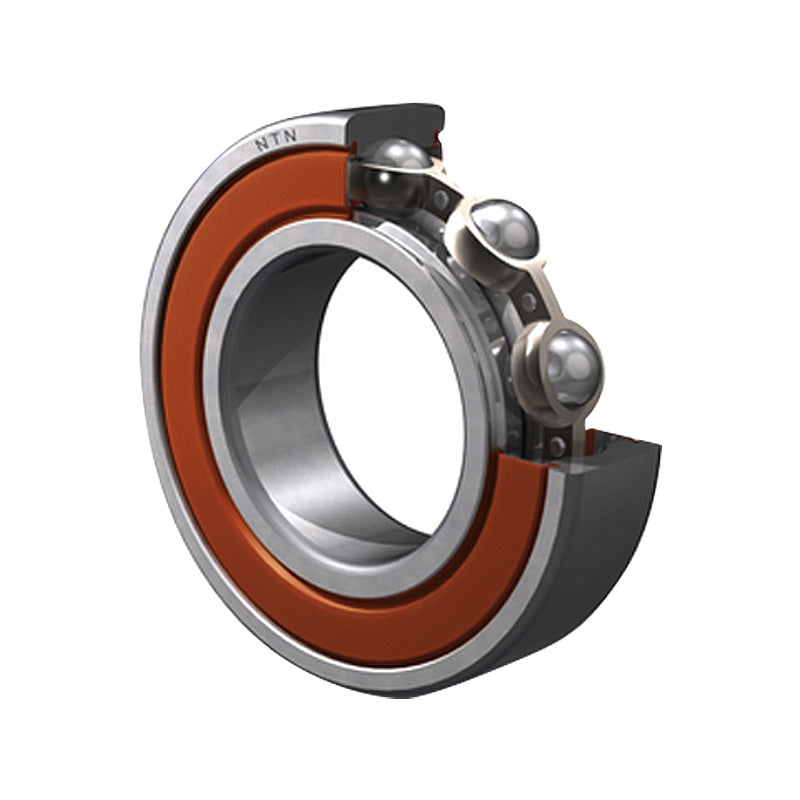

NTN 6919LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 6919LLUCM 61919LLUCM 6919LLU 61919LLU 6919NSE 6919DU 6919RS 6919RSH 6919P 6919RSR 6919LU 69192NSE 6919DDU 69192RS 6919-2RS 69192RS1 69192RSH 6919PP 69192RSR 6919LLU 6919RS2 69192RS2 69192RSL 6919LFS 6919EE 1919SZZ 6919DD AY952RS 9319NPP
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6919LLUCM 61919LLUCM 6919LLU 61919LLU 6919NSE 6919DU 6919RS 6919RSH 6919P 6919RSR 6919LU 69192NSE 6919DDU 69192RS 6919-2RS 69192RS1 69192RSH 6919PP 69192RSR 6919LLU 6919RS2 69192RS2 69192RSL 6919LFS 6919EE 1919SZZ 6919DD AY952RS 9319NPP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 130mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 37.5 kN |
| C<sub>or</sub> | 33.5 kN |
| C<sub>u</sub> | 2.1 kN |
| f<sub>0</sub> | 16.6 kN |
| Speed | 2800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 101.5mm |
| d<sub>a</sub> Max. | 104mm |
| D<sub>a</sub> Max. | 123.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.579 kg |
