SKU: 7.5SS316-JUB

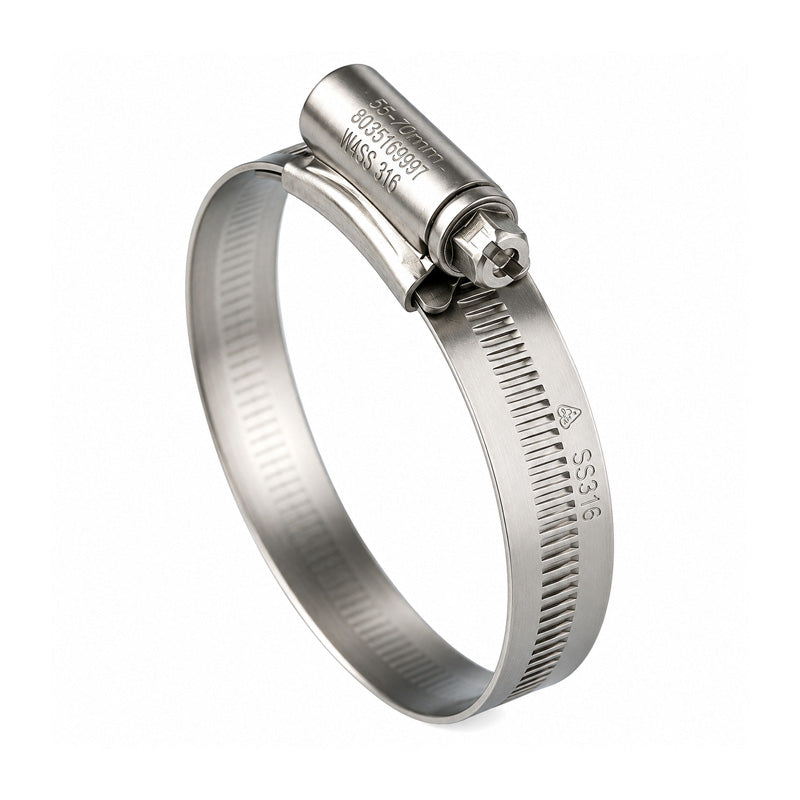

7.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 158mm-190mm Band Width 13mm

Name: 7.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 158mm-190mm Band Width 13mm
Brand: Jubilee
SKU: 7.5SS316-JUB
Price: 9.00 CHF
Availability: InStock

CHF 9.00 ex VAT

Sale Sold out

Low stock

Price Break

3+ CHF 7.66

5+ CHF 7.35

9+ CHF 7.20

19+ CHF 6.97

49+ CHF 6.81

74+ CHF 6.42

99+ CHF 5.42

199+ CHF 5.42

249+ CHF 5.42

499+ CHF 5.42

999+ CHF 5.42

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee^® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

Brand / Quality:: Jubilee - High Quality
Width:: 13mm
Min Adjustment Range:: 158mm
Max Adjustment Range:: 190mm

Technical

BS No.	190
Adjustment Range	158mm - 190mm
Adjustment Range	6-1/4 - 7-1/2 inch
Band Width (+/- 0.1)	13mm
Band Thickness (+/- 0.1)	0.914mm
Recommended Torque	5.9Nm
Maximum Torque	7.9Nm
Maximum Pressure	18 Psi
