SKU: 7006A5SN24TRDULP3-RHP

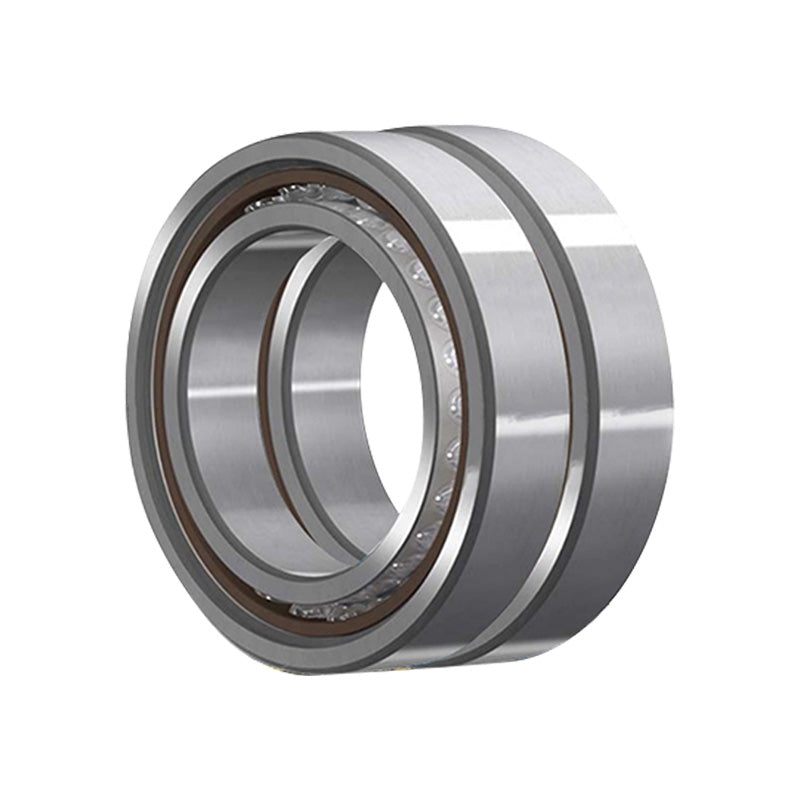

RHP 7006A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)

RHP 7006A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)
Regular price CHF 563.45 ex VAT
Regular price Sale price CHF 563.45 ex VAT
Sale Sold out

In stock

Price Break
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 30mm
D 55mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -15.1Kn
C<sub>or</sub> -9.8kN
Axial load Kn 9.56 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 16.4mm
Max speed in grease 30600 rpm
Max speed in oil 45900 rpm
--- Fitting dimensions
d<sub>a min</sub> 36mm
D<sub>a max</sub> 49mm
D<sub>b max</sub> 50mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.204kg
