SKU: 7007CTRSULP3-RHP

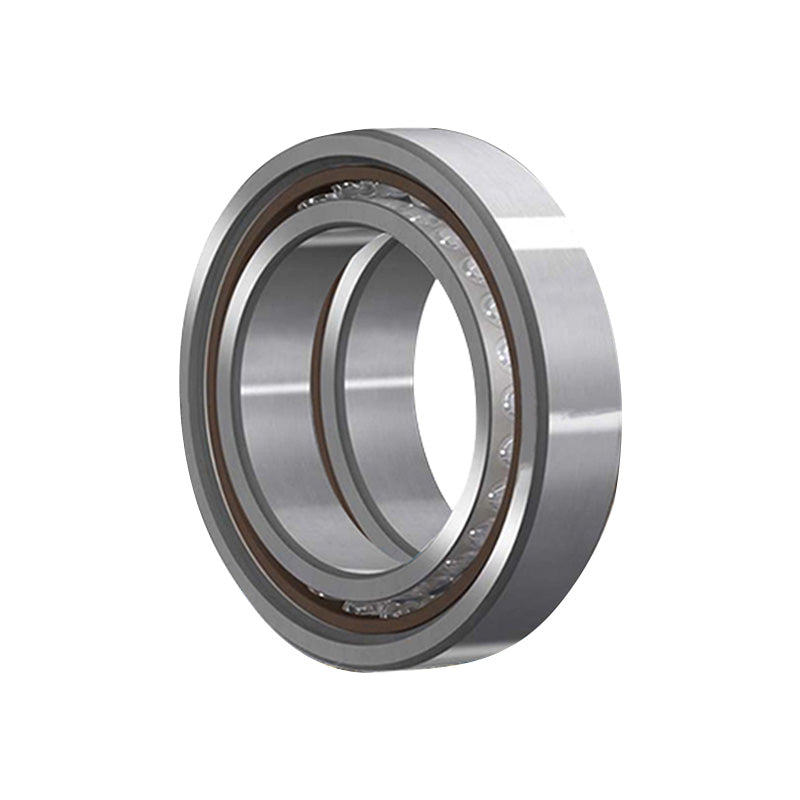

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
Regular price CHF 137.00 ex VAT
Regular price Sale price CHF 137.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 108.66
5+ CHF 102.56
10+ CHF 101.34
25+ CHF 100.12
49+ CHF 98.90
74+ CHF 97.68
99+ CHF 91.57
199+ CHF 90.35
249+ CHF 89.13
499+ CHF 87.91
999+ CHF 85.47
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
