SKU: 7007UCDB/GNP4-NTN

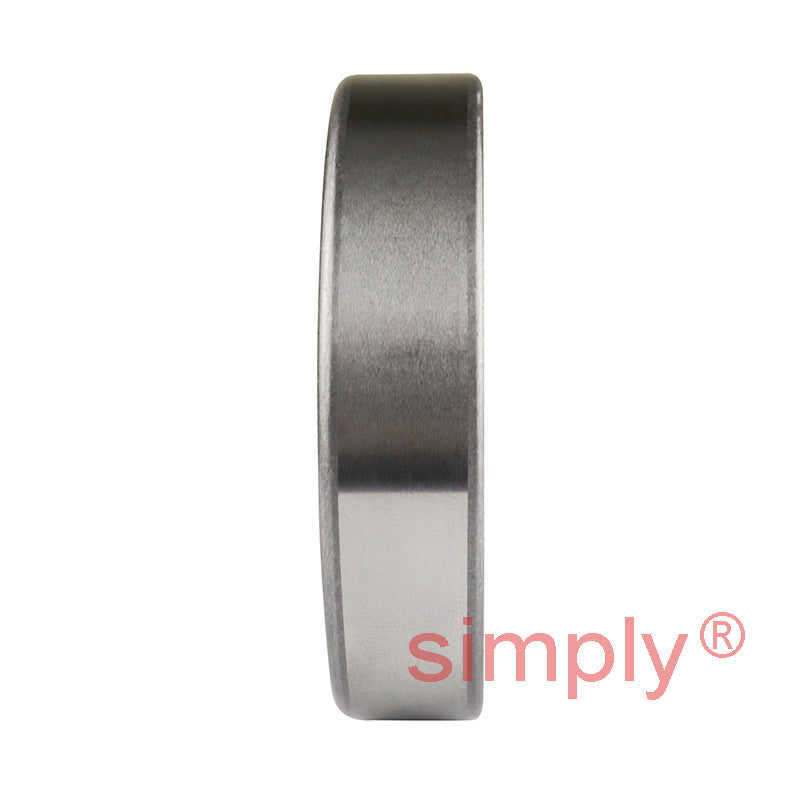

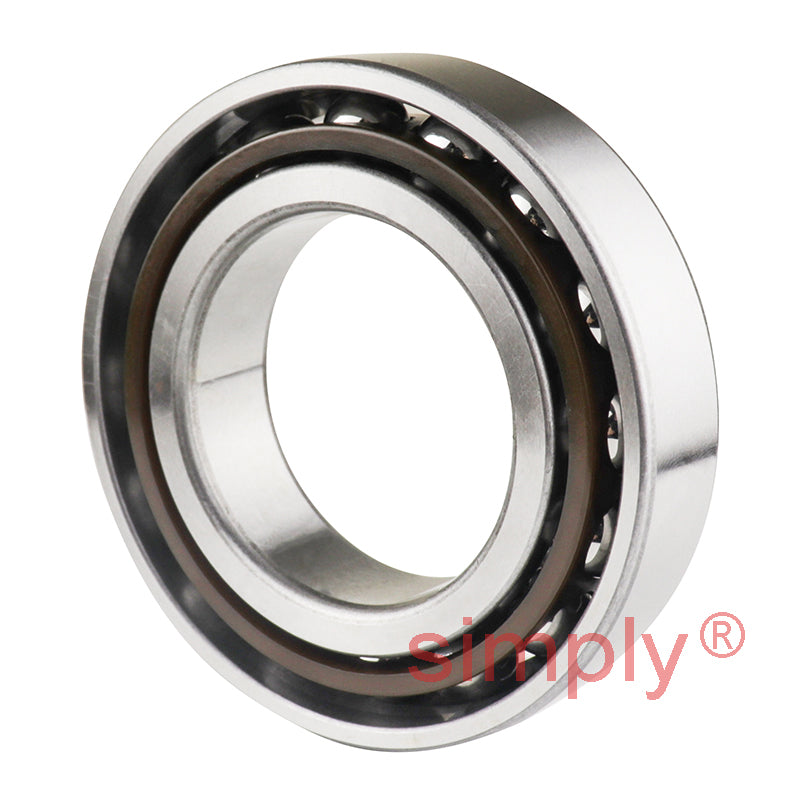

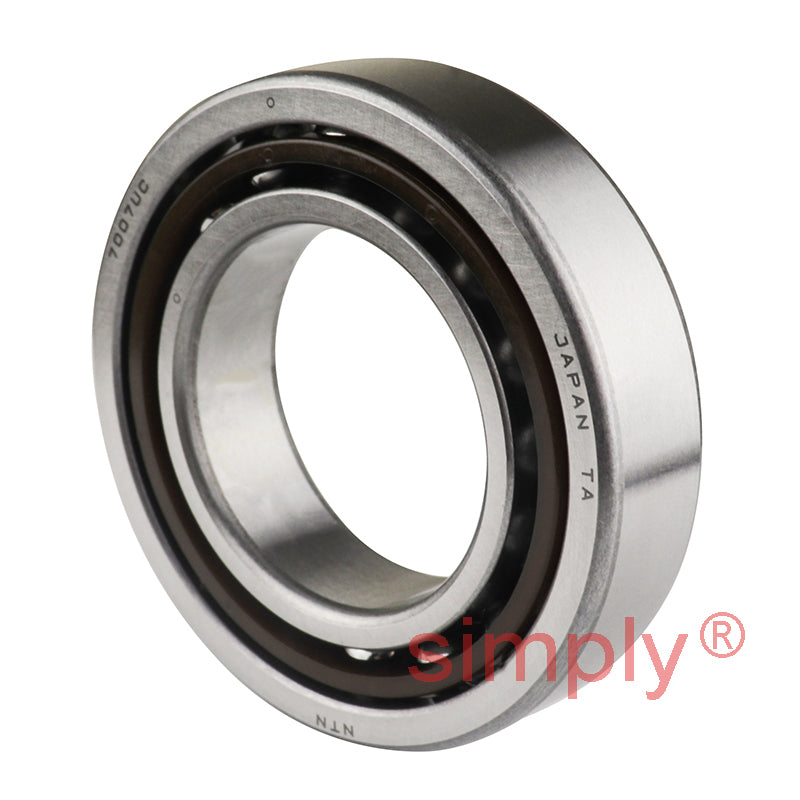

NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm
NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm
Regular price
CHF 145.00
ex VAT
Regular price
Sale price
CHF 145.00
ex VAT
In stock
Price Break
10+
CHF 114.87
19+
CHF 108.42
29+
CHF 107.13
39+
CHF 105.84
49+
CHF 104.55
74+
CHF 103.26
99+
CHF 96.80
199+
CHF 95.51
249+
CHF 94.22
499+
CHF 92.93
999+
CHF 90.35
Description
Description
Duplex Angular Contact Ball Bearing - Back to BackÂ

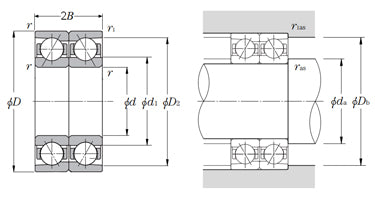

This bearing is manufactured as two angular contact ball bearings back to back. See schematic for further information.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 28 mm |
| 2B | 28mm |
| d1 | 44mm |
| d2 | 42mm |
| D1 | 52mm |
| D2 | 57mm |
| r | 1mm |
| r1 | 0.6mm |
| da min | 40.5mm |
| Da max | 56.5mm |
| Db max | 57.5mm |
| ras max | 1mm |
| r1as max | 0.6mm |
| Contact Angle | 15 ? |
| Limiting Speed - Oil | 30960 RPM |
| Limiting Speed - Grease | 19360 RPM |
| Material | High Carbon Chrome Steel |
| Cage Type | Fiber Glass Reinforced |
| Cage Material | Nylon |
| Ball Material | Steel |
| Temperature Range | -40 to 250 ?F-40 to 120 ?C |
