SKU: 70G2809-GATES

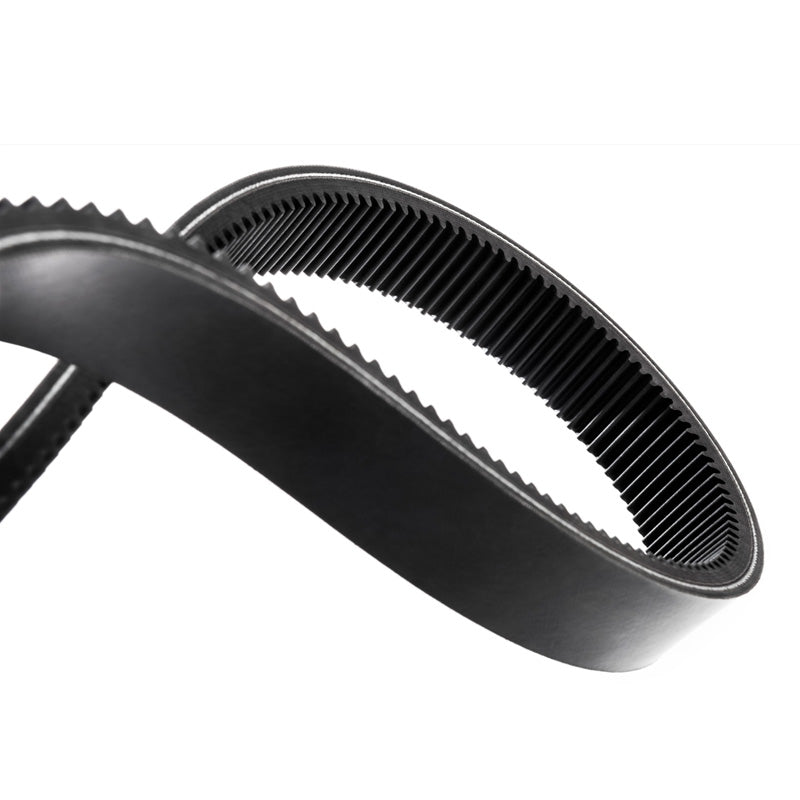

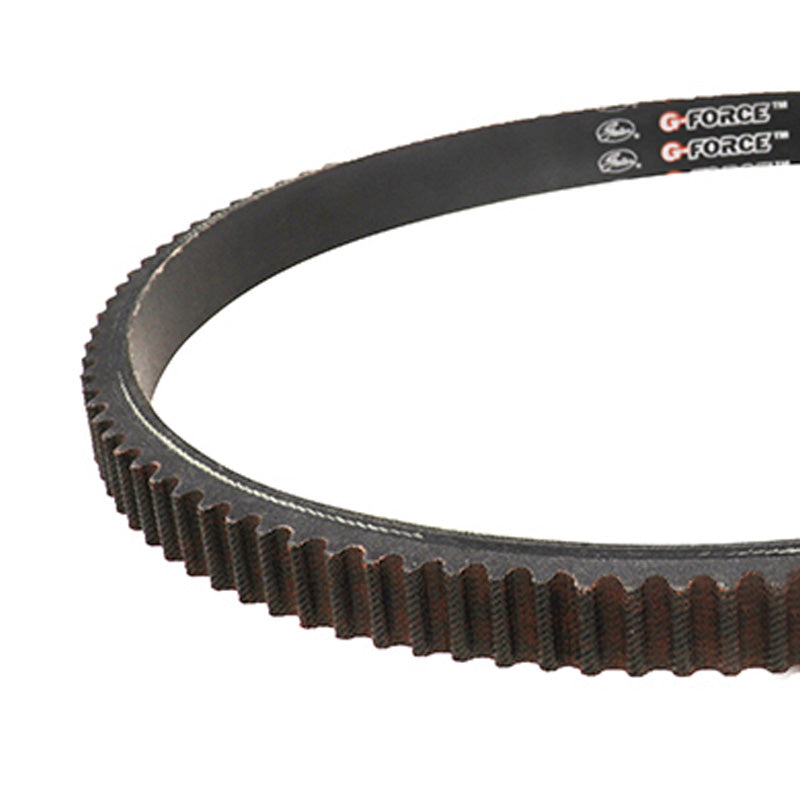

Gates G-Force 70G2809 Variable Speed Belt 712mm Length 17mm Width
Gates G-Force 70G2809 Variable Speed Belt 712mm Length 17mm Width
Regular price
CHF 39.40
ex VAT
Regular price
Sale price
CHF 39.40
ex VAT
In stock
Price Break
10+
CHF 35.07
19+
CHF 33.10
29+
CHF 32.70
39+
CHF 32.31
49+
CHF 31.91
74+
CHF 31.52
99+
CHF 29.55
199+
CHF 29.16
249+
CHF 28.76
499+
CHF 28.37
999+
CHF 27.58
Couldn't load pickup availability
Description
Description
Gates G-Force CVT Belts: Gates® G-Force™ continuously variable transmission (CVT) belts are the ultimate, high-tech component for transferring power on your smaller recreational power sports equipment. G-Force™ belts are designed with durability, simplicity, performance and value in mind, then tested under tough conditions in controlled environments. So, whether you?re loading up your UTV for a hard day?s work or off-roading on the road less traveled, Gates recreational belt drives and power transmission solutions continue to push the limits of what?s possible so you can, too.
Benefits:Matches OE belt shift curves and pulley speed ratios; excellent performance at a reduced cost, Extensively lab-tested using severe-duty dynamometer conditions and on vehicles in the field, Advanced trapezoid top notch and rounded cog design maximize heat dissipation and flexibility
Benefits:Matches OE belt shift curves and pulley speed ratios; excellent performance at a reduced cost, Extensively lab-tested using severe-duty dynamometer conditions and on vehicles in the field, Advanced trapezoid top notch and rounded cog design maximize heat dissipation and flexibility
- Brand / Quality:
- Gates - High Quality

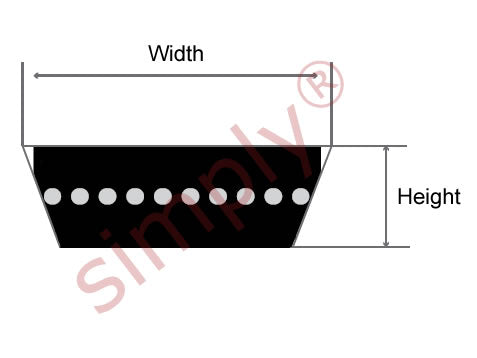

- Belt Width Approx:
- 17mm
- Belt Depth Approx:
- 8.9mm
- Belt Length Approx:
- 712mm
Technical
Technical
| Part Number | 70G2809 |
|---|---|
| Cross Section | RVS-R |
| Effective Length | 733mm (28.02 inch) |
| Outside Circumference | 712mm (28.875 inch) |
| Pitch Length | 712mm (28.016 inch) |
| Pitch Width | 16.8mm (0.663 inch) |
| Top Width | 17mm (0.688 inch) |
| Thickness (Height) | 8.9mm (0.35 inch) |
| Angle | 16.8 degress |
| Notched | True |
