SKU: 70USOC15 .A21.0/I.M-UKF

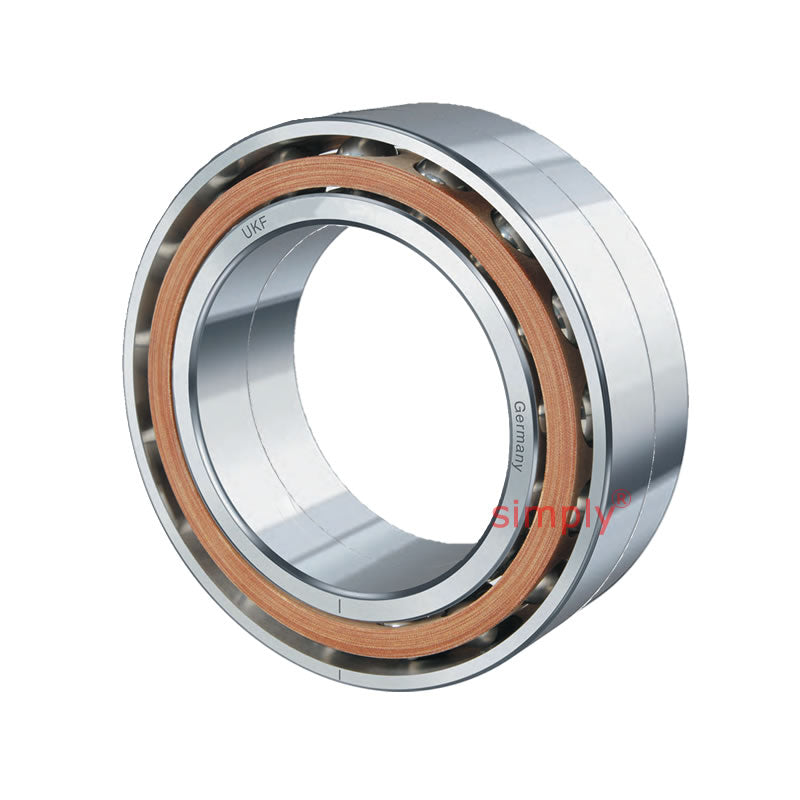

UKF 70USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
UKF 70USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Regular price
CHF 334.47
ex VAT
Regular price
Sale price
CHF 334.47
ex VAT
Equivalent to: 70USOC15 .A21.0/I.M
In stock
Price Break
10+
CHF 297.68
19+
CHF 280.95
29+
CHF 277.61
39+
CHF 274.27
49+
CHF 270.92
74+
CHF 267.58
99+
CHF 250.85
199+
CHF 247.51
249+
CHF 244.16
499+
CHF 240.82
999+
CHF 234.13
Couldn't load pickup availability
Description
Description
Equivalent: 70USOC15 .A21.0/I.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 18mm |
| Dynamic load Co | 3960 N |
| Static load C | 7700 N |
| Speed in Grease | 52500 rpm |
| Speed in Oil | 81200 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.05 kg |
