SKU: 70USOC15 .A21.0/I.S-UKF

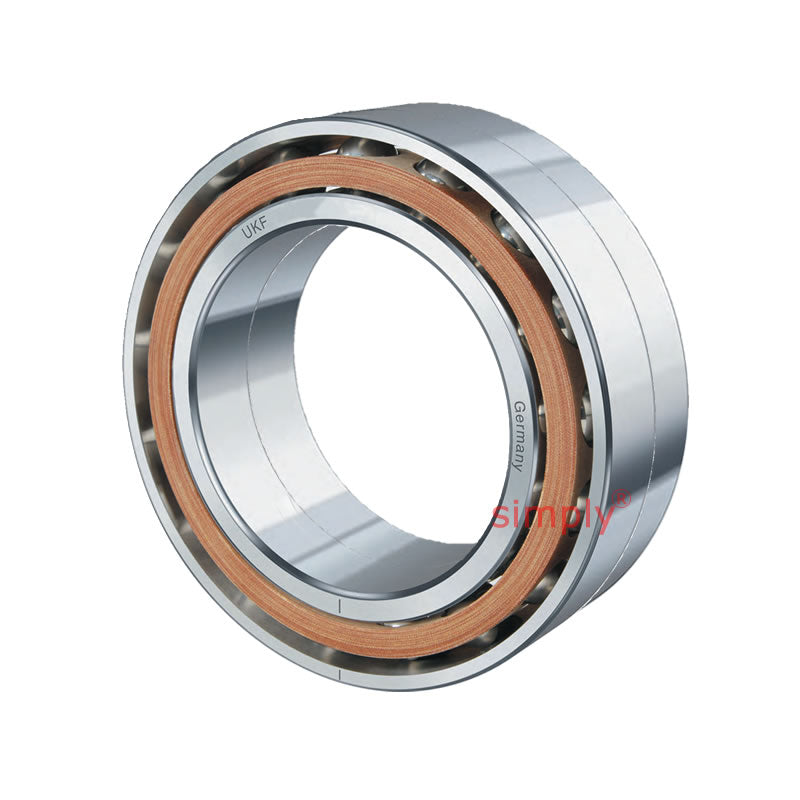

UKF 70USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
UKF 70USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Regular price
CHF 470.26
ex VAT
Regular price
Sale price
CHF 470.26
ex VAT
Equivalent to: 70USOC15 .A21.0/I.S
In stock
Price Break
10+
CHF 418.53
19+
CHF 395.02
29+
CHF 390.32
39+
CHF 385.61
49+
CHF 380.91
74+
CHF 376.21
99+
CHF 352.70
199+
CHF 347.99
249+
CHF 343.29
499+
CHF 338.59
999+
CHF 329.18
Couldn't load pickup availability
Description
Description
Equivalent: 70USOC15 .A21.0/I.S
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Heavy preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 18mm |
| Dynamic load Co | 3960 N |
| Static load C | 7700 N |
| Speed in Grease | 52500 rpm |
| Speed in Oil | 81200 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.05 kg |
