SKU: 70USOC15 .A21.I/I.S-UKF

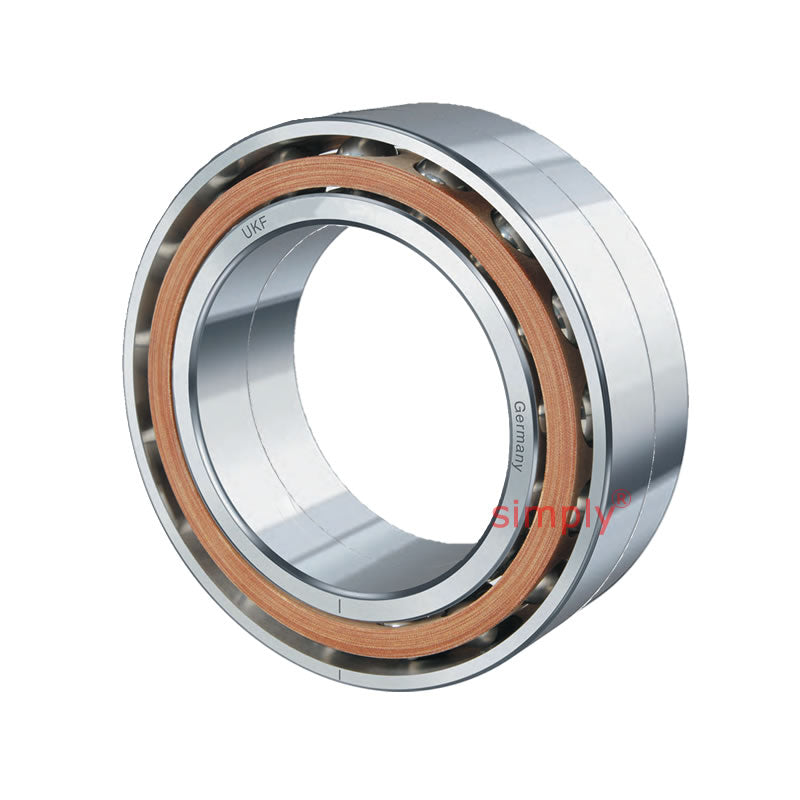

UKF 70USOC15A21IIS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
UKF 70USOC15A21IIS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Regular price
CHF 446.05
ex VAT
Regular price
Sale price
CHF 446.05
ex VAT
Equivalent to: 70USOC15 .A21.I/I.S
In stock
Price Break
10+
CHF 396.98
19+
CHF 374.68
29+
CHF 370.22
39+
CHF 365.76
49+
CHF 361.30
74+
CHF 356.84
99+
CHF 334.54
199+
CHF 330.08
249+
CHF 325.62
499+
CHF 321.16
999+
CHF 312.24
Couldn't load pickup availability
Description
Description
Equivalent: 70USOC15 .A21.I/I.S
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Heavy preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 18mm |
| Dynamic load Co | 3960 N |
| Static load C | 7700 N |
| Speed in Grease | 52500 rpm |
| Speed in Oil | 81200 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.05 kg |
