SKU: 70USOC30 .A21.0/0.L-UKF

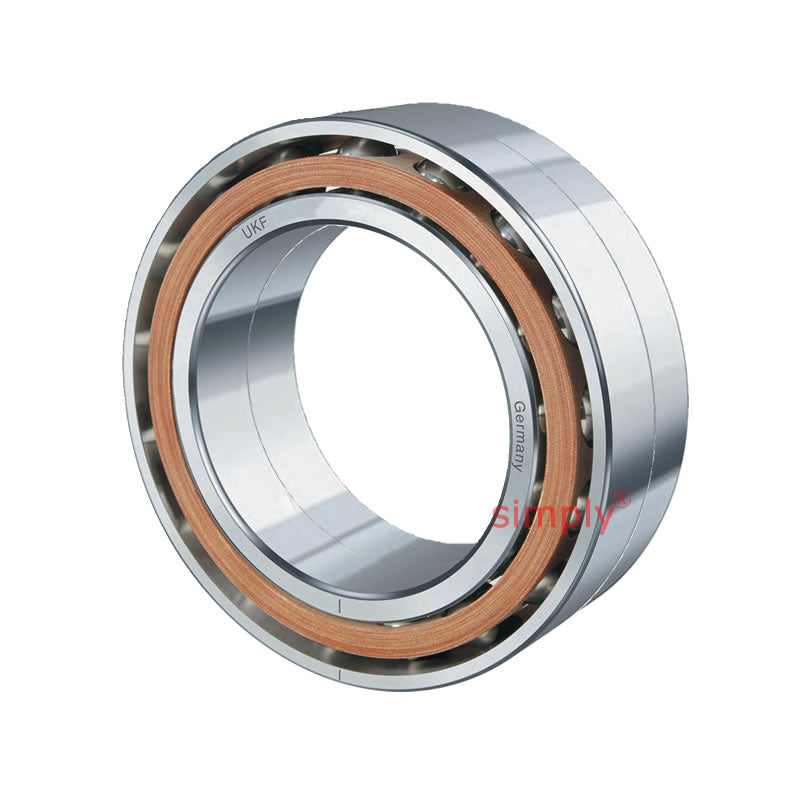

UKF 70USOC30A2100L Super Precision Double Row Angular Contact Spindle Bearing 30x55x26mm

Name: UKF 70USOC30A2100L Super Precision Double Row Angular Contact Spindle Bearing 30x55x26mm
Brand: UKF
SKU: 70USOC30 .A21.0/0.L-UKF
Price: 406.00 CHF
Availability: InStock

CHF 406.00 ex VAT

Sale Sold out

Equivalent to: 70USOC30 .A21.0/0.L

In stock

Price Break

3+ CHF 323.42

5+ CHF 305.25

10+ CHF 301.61

25+ CHF 297.98

49+ CHF 294.35

74+ CHF 290.71

99+ CHF 272.54

199+ CHF 268.91

249+ CHF 265.27

499+ CHF 261.64

999+ CHF 254.37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USOC30 .A21.0/0.L

Brand / Quality:: UKF - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 55mm
Width:: 26mm
Seals / Shields:: None
Style:: Double Row Angular Contact Spindle Bearings
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Light preload

Technical

d	30mm
D	55mm
B	26mm
Dynamic load Co	11000 N
Static load C	18550 N
Speed in Grease	30100 rpm
Speed in Oil	44800 rpm
r<sub>a</sub>	1mm
d<sub>a</sub>	36mm
D<sub>a</sub>	49mm
Axial Preload F<sub>v</sub> L	100 N
Axial Preload F<sub>v</sub> M	300 N
Axial Preload F<sub>v</sub> S	610 N
Axial Rigidity R<sub>a</sub> L	66 N/μm
Axial Rigidity R<sub>a</sub> M	94 N/μm
Axial Rigidity R<sub>a</sub> S	121 N/μm
Radial Rigidity R<sub>r</sub> L	265 N/μm
Radial Rigidity R <sub>r</sub> M	380 N/μm
Radial Rigidity <sub>r</sub> S	477 N/μm
Weight	0.19 kg
