SKU: 70USSC120 .A25.0/0.L-UKF

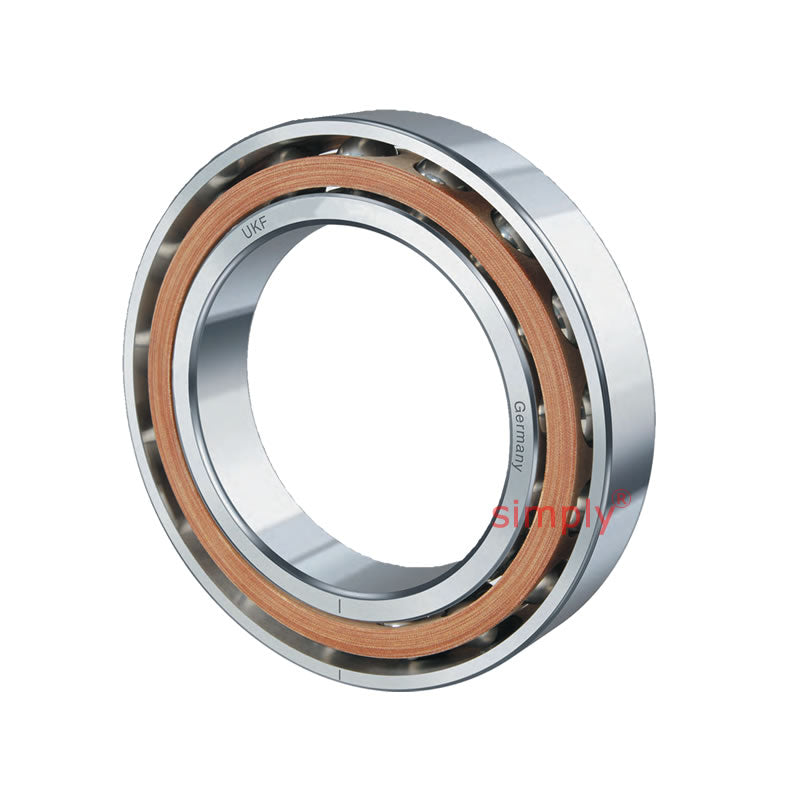

UKF 70USSC120A2500L Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
UKF 70USSC120A2500L Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
Regular price
CHF 862.83
ex VAT
Regular price
Sale price
CHF 862.83
ex VAT
Equivalent to: 70USSC120 .A25.0/0.L
In stock
Price Break
10+
CHF 767.92
19+
CHF 724.78
29+
CHF 716.15
39+
CHF 707.52
49+
CHF 698.89
74+
CHF 690.26
99+
CHF 647.12
199+
CHF 638.49
249+
CHF 629.87
499+
CHF 621.24
999+
CHF 603.98
Couldn't load pickup availability
Description
Description
Equivalent: 70USSC120 .A25.0/0.L
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 25 Degree contact angle
- Bearing Preload:
- Light preload
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load Co | 58850 N |
| Static load C | 73500 N |
| Speed in Grease | 8400 rpm |
| Speed in Oil | 12800 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 132mm |
| D<sub>a</sub> | 168mm |
| Axial Preload F<sub>v</sub> L | 730 N |
| Axial Preload F<sub>v</sub> M | 2200 N |
| Axial Preload F<sub>v</sub> S | 4400 N |
| Axial Rigidity R<sub>a</sub> L | 247 N/μm |
| Axial Rigidity R<sub>a</sub> M | 357 N/μm |
| Axial Rigidity R<sub>a</sub> S | 449 N/μm |
| Radial Rigidity R<sub>r</sub> L | 989 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1426 N/μm |
| Radial Rigidity <sub>r</sub> S | 1794 N/μm |
| Weight | 1.83 kg |
