SKU: 70USSC120 .A25.0/I.L-UKF

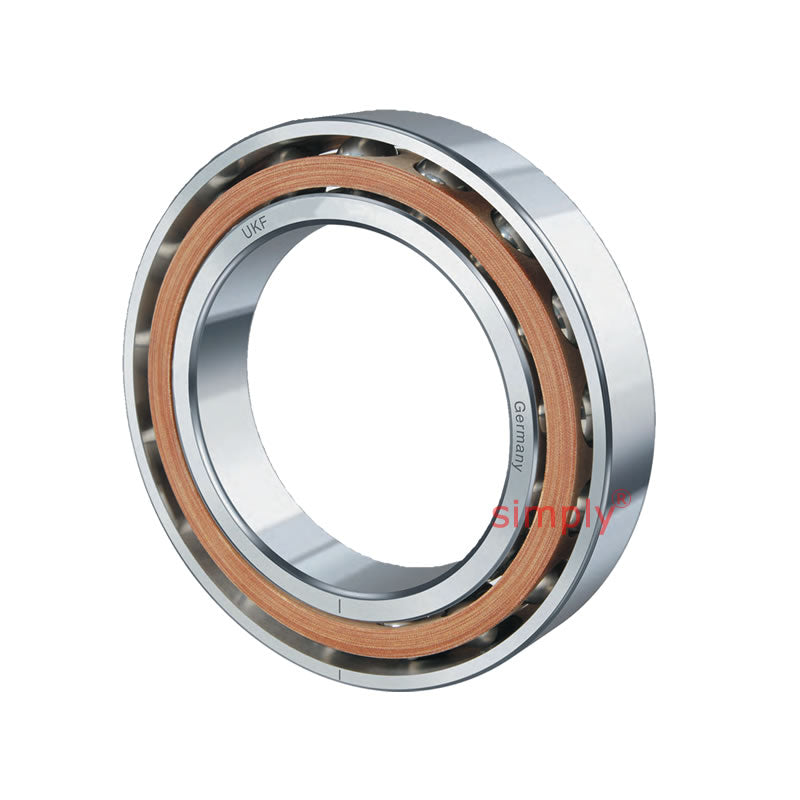

UKF 70USSC120A250IL Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
UKF 70USSC120A250IL Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
Regular price
CHF 785.46
ex VAT
Regular price
Sale price
CHF 785.46
ex VAT
Equivalent to: 70USSC120 .A25.0/I.L
In stock
Price Break
10+
CHF 699.06
19+
CHF 659.79
29+
CHF 651.93
39+
CHF 644.08
49+
CHF 636.22
74+
CHF 628.37
99+
CHF 589.10
199+
CHF 581.24
249+
CHF 573.39
499+
CHF 565.53
999+
CHF 549.82
Couldn't load pickup availability
Description
Description
Equivalent: 70USSC120 .A25.0/I.L
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 25 Degree contact angle
- Bearing Preload:
- Light preload
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load Co | 58850 N |
| Static load C | 73500 N |
| Speed in Grease | 8400 rpm |
| Speed in Oil | 12800 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 132mm |
| D<sub>a</sub> | 168mm |
| Axial Preload F<sub>v</sub> L | 730 N |
| Axial Preload F<sub>v</sub> M | 2200 N |
| Axial Preload F<sub>v</sub> S | 4400 N |
| Axial Rigidity R<sub>a</sub> L | 247 N/μm |
| Axial Rigidity R<sub>a</sub> M | 357 N/μm |
| Axial Rigidity R<sub>a</sub> S | 449 N/μm |
| Radial Rigidity R<sub>r</sub> L | 989 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1426 N/μm |
| Radial Rigidity <sub>r</sub> S | 1794 N/μm |
| Weight | 1.83 kg |
