SKU: 70USSC25 .A21.0/0.M-UKF

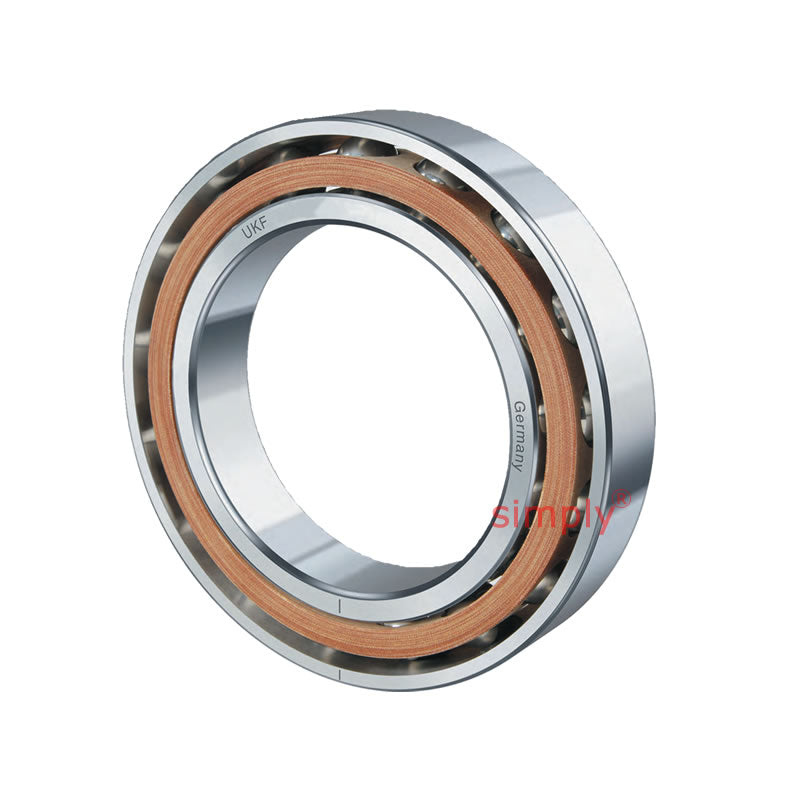

UKF 70USSC25A2100M Super Precision Single Row Angular Contact Spindle Bearing 25x47x12mm

Name: UKF 70USSC25A2100M Super Precision Single Row Angular Contact Spindle Bearing 25x47x12mm
Brand: UKF
SKU: 70USSC25 .A21.0/0.M-UKF
Price: 162.00 CHF
Availability: InStock

CHF 162.00 ex VAT

Sale Sold out

Equivalent to: 70USSC25 .A21.0/0.M

In stock

Price Break

3+ CHF 128.68

5+ CHF 121.45

10+ CHF 120.01

25+ CHF 118.56

49+ CHF 117.11

74+ CHF 115.67

99+ CHF 108.44

199+ CHF 106.99

249+ CHF 105.55

499+ CHF 104.10

999+ CHF 101.21

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USSC25 .A21.0/0.M

Brand / Quality:: UKF - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 47mm
Width:: 12mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Medium preload

Technical

d	25mm
D	47mm
B	12mm
Dynamic load Co	4510 N
Static load C	9380 N
Speed in Grease	36400 rpm
Speed in Oil	56000 rpm
r<sub>a</sub>	0.6mm
d<sub>a</sub>	30mm
D<sub>a</sub>	42mm
Axial Preload F<sub>v</sub> L	80 N
Axial Preload F<sub>v</sub> M	240 N
Axial Preload F<sub>v</sub> S	470 N
Axial Rigidity R<sub>a</sub> L	59 N/μm
Axial Rigidity R<sub>a</sub> M	85 N/μm
Axial Rigidity R<sub>a</sub> S	107 N/μm
Radial Rigidity R<sub>r</sub> L	236 N/μm
Radial Rigidity R <sub>r</sub> M	345 N/μm
Radial Rigidity <sub>r</sub> S	431 N/μm
Weight	0.07 kg
