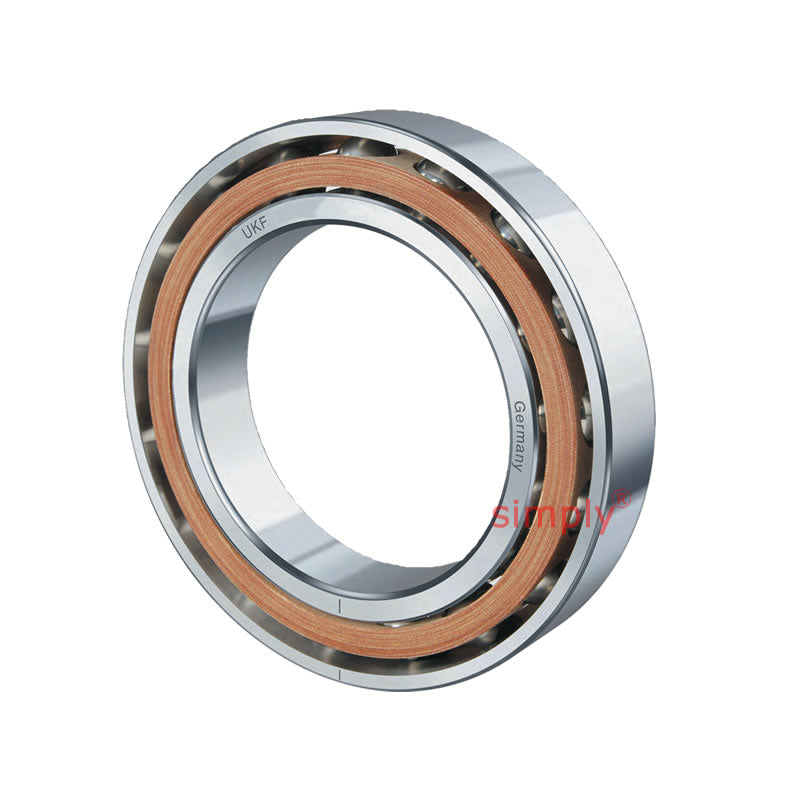

UKF 70USSC45A210IM Super Precision Single Row Angular Contact Spindle Bearing 45x75x16mm

Name: UKF 70USSC45A210IM Super Precision Single Row Angular Contact Spindle Bearing 45x75x16mm
Brand: UKF
SKU: 70USSC45 .A21.0/I.M-UKF
Price: 217.00 CHF
Availability: InStock

CHF 217.00 ex VAT

Sale Sold out

Equivalent to: 70USSC45 .A21.0/I.M

In stock

Price Break

3+ CHF 172.77

5+ CHF 163.06

10+ CHF 161.12

25+ CHF 159.18

49+ CHF 157.24

74+ CHF 155.30

99+ CHF 145.59

199+ CHF 143.65

249+ CHF 141.71

499+ CHF 139.77

999+ CHF 135.88

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USSC45 .A21.0/I.M

Brand / Quality:: UKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 75mm
Width:: 16mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Medium preload

Technical

d	45mm
D	75mm
B	16mm
Dynamic load Co	10615 N
Static load C	18060 N
Speed in Grease	21700 rpm
Speed in Oil	33600 rpm
r<sub>a</sub>	1mm
d<sub>a</sub>	51.5mm
D<sub>a</sub>	68.5mm
Axial Preload F<sub>v</sub> L	170 N
Axial Preload F<sub>v</sub> M	500 N
Axial Preload F<sub>v</sub> S	1010 N
Axial Rigidity R<sub>a</sub> L	95 N/μm
Axial Rigidity R<sub>a</sub> M	138 N/μm
Axial Rigidity R<sub>a</sub> S	173 N/μm
Radial Rigidity R<sub>r</sub> L	385 N/μm
Radial Rigidity R <sub>r</sub> M	552 N/μm
Radial Rigidity <sub>r</sub> S	702 N/μm
Weight	0.21 kg
