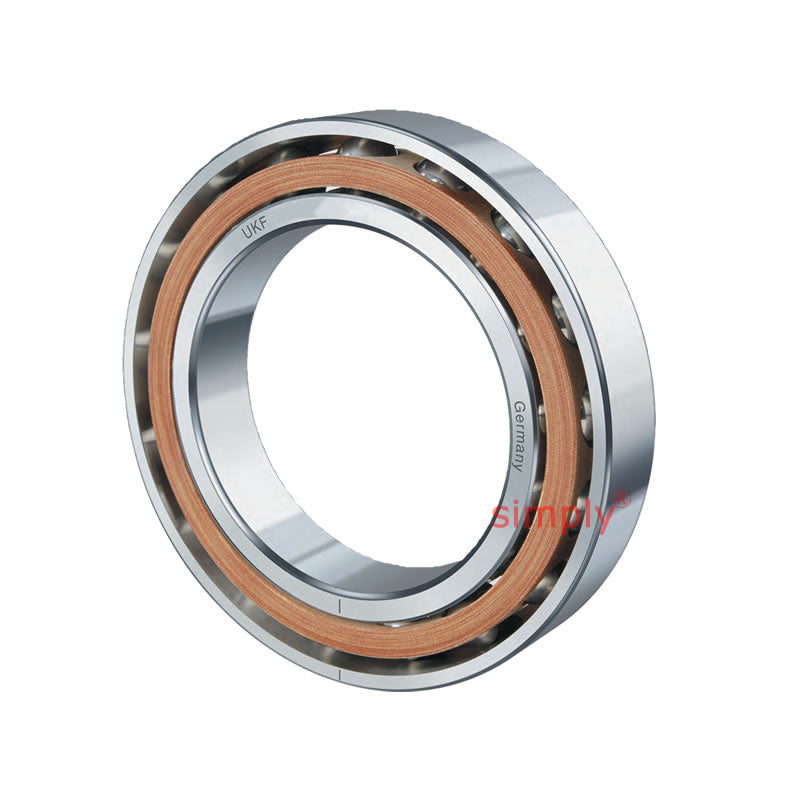

UKF 70USSC65A210IL Super Precision Single Row Angular Contact Spindle Bearing 65x100x18mm

Name: UKF 70USSC65A210IL Super Precision Single Row Angular Contact Spindle Bearing 65x100x18mm
Brand: UKF
SKU: 70USSC65 .A21.0/I.L-UKF
Price: 309.00 CHF
Availability: InStock

CHF 309.00 ex VAT

Sale Sold out

Equivalent to: 70USSC65 .A21.0/I.L

In stock

Price Break

3+ CHF 246.02

5+ CHF 232.20

10+ CHF 229.43

25+ CHF 226.67

49+ CHF 223.90

74+ CHF 221.14

99+ CHF 207.32

199+ CHF 204.55

249+ CHF 201.79

499+ CHF 199.03

999+ CHF 193.50

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USSC65 .A21.0/I.L

Brand / Quality:: UKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 100mm
Width:: 18mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Light preload

Technical

d	65mm
D	100mm
B	18mm
Dynamic load Co	15730 N
Static load C	22750 N
Speed in Grease	15400 rpm
Speed in Oil	24500 rpm
r<sub>a</sub>	1mm
d<sub>a</sub>	72mm
D<sub>a</sub>	93mm
Axial Preload F<sub>v</sub> L	250 N
Axial Preload F<sub>v</sub> M	760 N
Axial Preload F<sub>v</sub> S	1540 N
Axial Rigidity R<sub>a</sub> L	132 N/μm
Axial Rigidity R<sub>a</sub> M	190 N/μm
Axial Rigidity R<sub>a</sub> S	236 N/μm
Radial Rigidity R<sub>r</sub> L	523 N/μm
Radial Rigidity R <sub>r</sub> M	759 N/μm
Radial Rigidity <sub>r</sub> S	955 N/μm
Weight	0.37 kg
