SKU: 711-504055

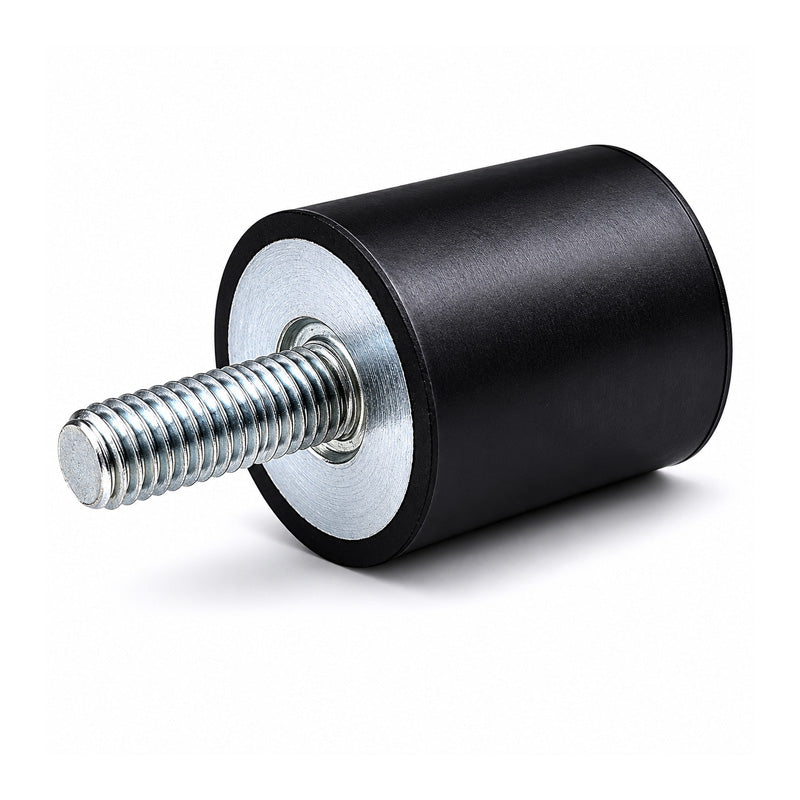

High-Performance Male/Female Anti-Vibration Bobbin 50x40mm M10 Threads
High-Performance Male/Female Anti-Vibration Bobbin 50x40mm M10 Threads
Regular price
CHF 9.19
ex VAT
Regular price
Sale price
CHF 9.19
ex VAT
In stock
Price Break
10+
CHF 8.18
19+
CHF 7.72
29+
CHF 7.63
39+
CHF 7.54
49+
CHF 7.44
74+
CHF 7.35
99+
CHF 6.89
199+
CHF 6.80
249+
CHF 6.71
499+
CHF 6.62
999+
CHF 6.43
Couldn't load pickup availability
Description
Description
Female to Male Bobbin Mounts: These female to male anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M10
- Outside Diameter:
- 50mm
- Length:
- 40mm
- Material:
- Bright Zinc Plated Steel
- Overall Length:
- 66mm
Technical
Technical
| D | 50mm |
|---|---|
| D1 | M10 |
| D2 | M10 |
| L | 40mm |
| L1 | 26mm |
| L2 | 11mm |
| Deflection at Max Compressive Load | 115mm |
| Deflection at Max Sheer Load | 6.2mm |
| Max Compressive Load | 49 kg |
| Max Sheer Load | 9.5 kg |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.17 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a> |
