SKU: 711-755055

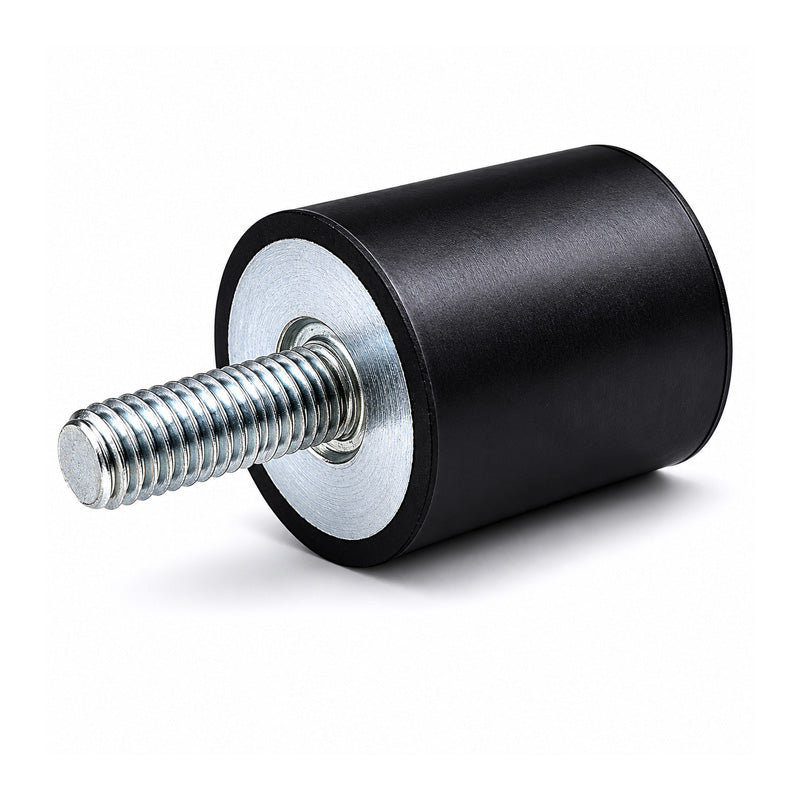

High-Performance Male/Female Anti-Vibration Bobbin 75x50mm M12 Threads
High-Performance Male/Female Anti-Vibration Bobbin 75x50mm M12 Threads
Regular price
CHF 21.28
ex VAT
Regular price
Sale price
CHF 21.28
ex VAT
In stock
Price Break
10+
CHF 18.94
19+
CHF 17.88
29+
CHF 17.66
39+
CHF 17.45
49+
CHF 17.24
74+
CHF 17.02
99+
CHF 15.96
199+
CHF 15.75
249+
CHF 15.53
499+
CHF 15.32
999+
CHF 14.90
Couldn't load pickup availability
Description
Description
Female to Male Bobbin Mounts: These female to male anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M12
- Outside Diameter:
- 75mm
- Length:
- 50mm
- Material:
- Bright Zinc Plated Steel
- Overall Length:
- 87mm
Technical
Technical
| D | 75mm |
|---|---|
| D1 | M12 |
| D2 | M12 |
| L | 50mm |
| L1 | 37mm |
| L2 | 15mm |
| Deflection at Max Compressive Load | 341mm |
| Deflection at Max Sheer Load | 6.5mm |
| Max Compressive Load | 122 kg |
| Max Sheer Load | 13.2 kg |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.48 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+steel+nut">M12 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+set+screw">M12 Click Here</a> |
