SKU: 712-404055A2

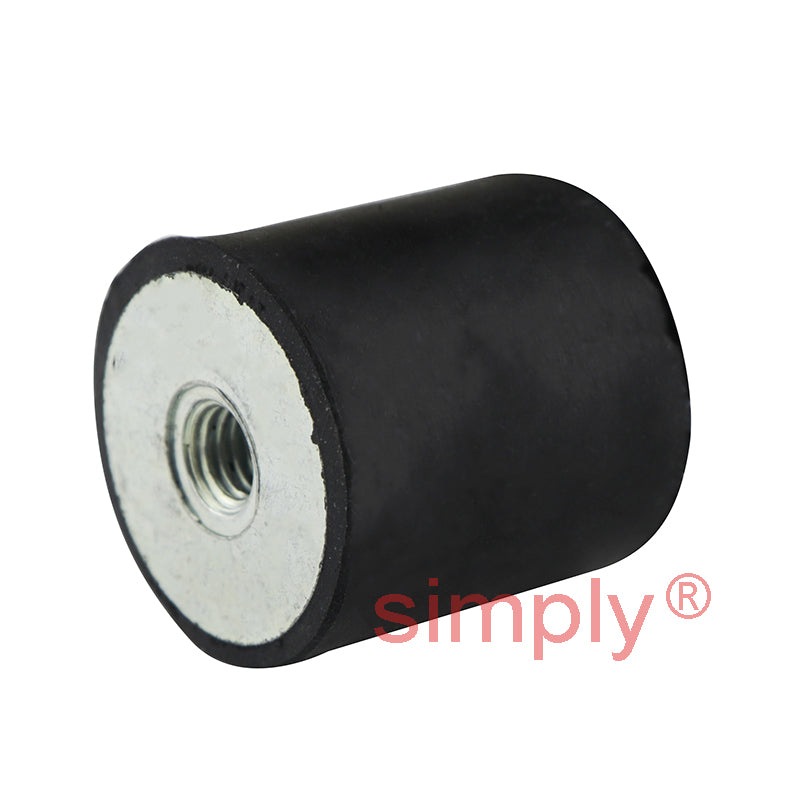

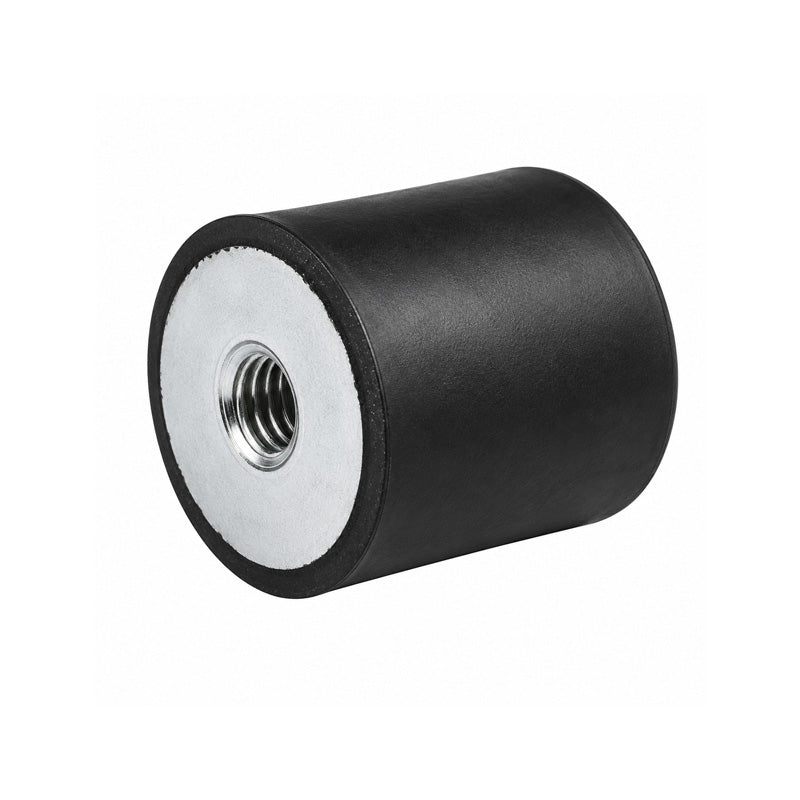

High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 40x40mm M8 Threads
High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 40x40mm M8 Threads
Regular price
CHF 13.57
ex VAT
Regular price
Sale price
CHF 13.57
ex VAT
In stock
Price Break
10+
CHF 12.08
19+
CHF 11.40
29+
CHF 11.26
39+
CHF 11.13
49+
CHF 10.99
74+
CHF 10.86
99+
CHF 10.18
199+
CHF 10.04
249+
CHF 9.91
499+
CHF 9.77
999+
CHF 9.50
Couldn't load pickup availability
Description
Description
Female to Female Bobbin Mounts: These female to female anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of 304 Grade Stainless Steel (A2) sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear or a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M8
- Outside Diameter:
- 40mm
- Length:
- 40mm
- Material:
- Stainless Steel
Technical
Technical
| D | 40mm |
|---|---|
| D1 | M8 |
| D2 | M8 |
| L | 40mm |
| L1 | 8mm |
| L2 | 8mm |
| Deflection at Max Compressive Load | 5.4mm |
| Deflection at Max Sheer Load | 7.8mm |
| Max Compressive Load | 78.9 kg |
| Max Sheer Load | 36.8 kg |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.11 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a> |
