SKU: 713-40301055

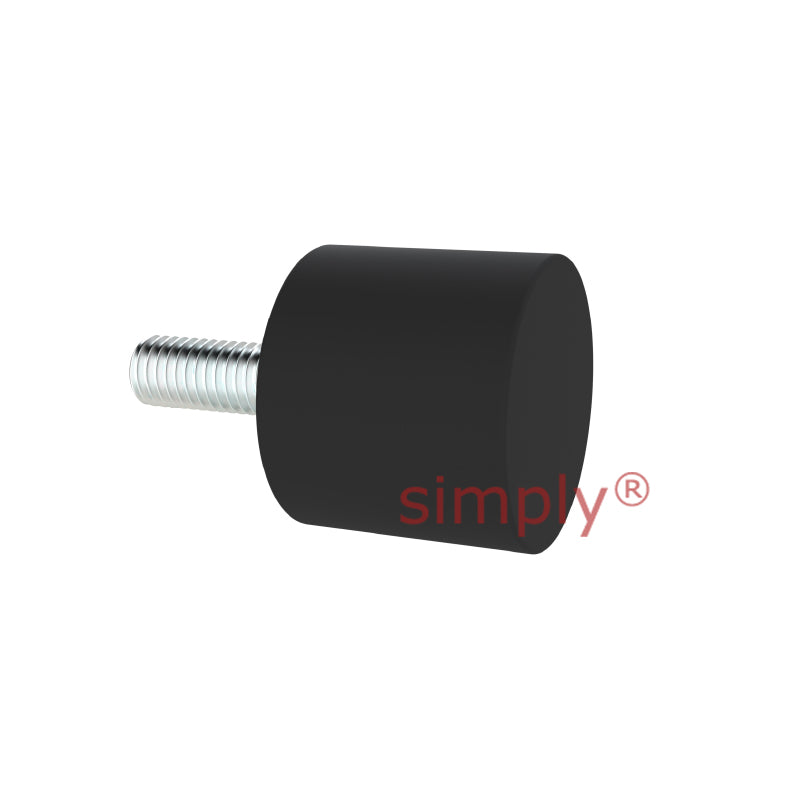

High-Performance Male Rubber Cylindrical Bump Stop 40x30mm M10 Thread
High-Performance Male Rubber Cylindrical Bump Stop 40x30mm M10 Thread
Regular price
CHF 6.91
ex VAT
Regular price
Sale price
CHF 6.91
ex VAT
In stock
Price Break
10+
CHF 6.15
19+
CHF 5.80
29+
CHF 5.74
39+
CHF 5.67
49+
CHF 5.60
74+
CHF 5.53
99+
CHF 5.18
199+
CHF 5.11
249+
CHF 5.04
499+
CHF 4.98
999+
CHF 4.84
Couldn't load pickup availability
Description
Description
Male Flat Buffers: These male anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M10
- Outside Diameter:
- 40mm
- Length:
- 30mm
- Material:
- Bright Zinc Plated Steel
- Overall Length:
- 58mm
Technical
Technical
| L | 30mm |
|---|---|
| D | 40mm |
| D1 | M10 |
| L1 | 28mm |
| Max Compressive Load | 76.4kg |
| Deflection at Max Compressive Load | 3.9mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.08 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a> |
