SKU: 713-755055Q

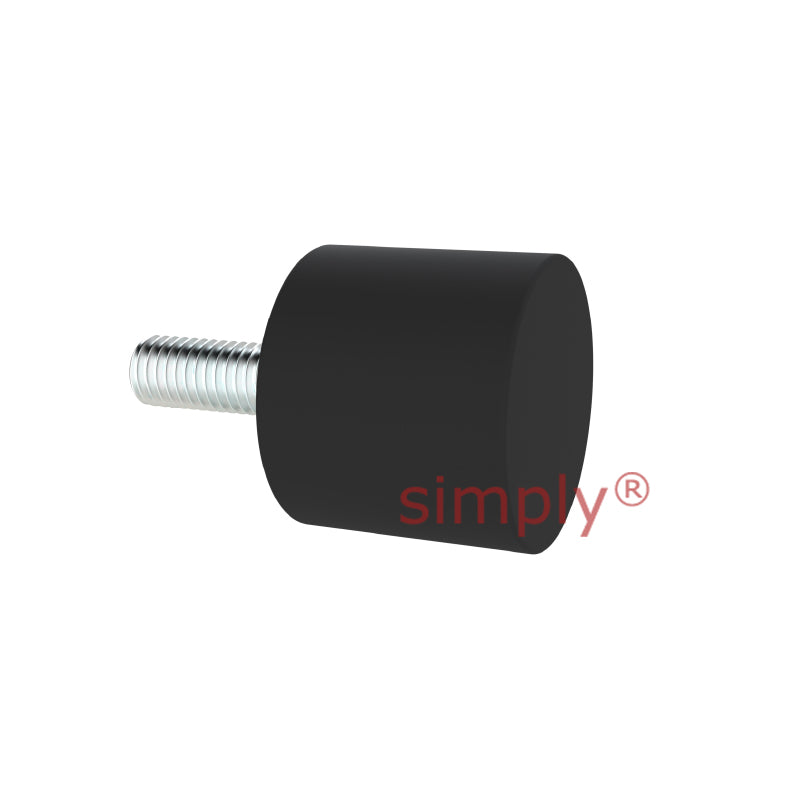

High-Performance Male Rubber Cylindrical Bump Stop 75x50mm M12 Thread
High-Performance Male Rubber Cylindrical Bump Stop 75x50mm M12 Thread
Regular price
CHF 18.24
ex VAT
Regular price
Sale price
CHF 18.24
ex VAT
In stock
Price Break
10+
CHF 16.23
19+
CHF 15.32
29+
CHF 15.14
39+
CHF 14.96
49+
CHF 14.77
74+
CHF 14.59
99+
CHF 13.68
199+
CHF 13.50
249+
CHF 13.32
499+
CHF 13.13
999+
CHF 12.77
Couldn't load pickup availability
Description
Description
Male Flat Buffers: These male anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M12
- Outside Diameter:
- 75mm
- Length:
- 50mm
- Material:
- Bright Zinc Plated Steel
- Overall Length:
- 77mm
Technical
Technical
| L | 50mm |
|---|---|
| D | 75mm |
| D1 | M12 |
| L1 | 27mm |
| Max Compressive Load | 341kg |
| Deflection at Max Compressive Load | 6.5mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.42 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+steel+nut">M12 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+set+screw">M12 Click Here</a> |
