SKU: 714-20150555

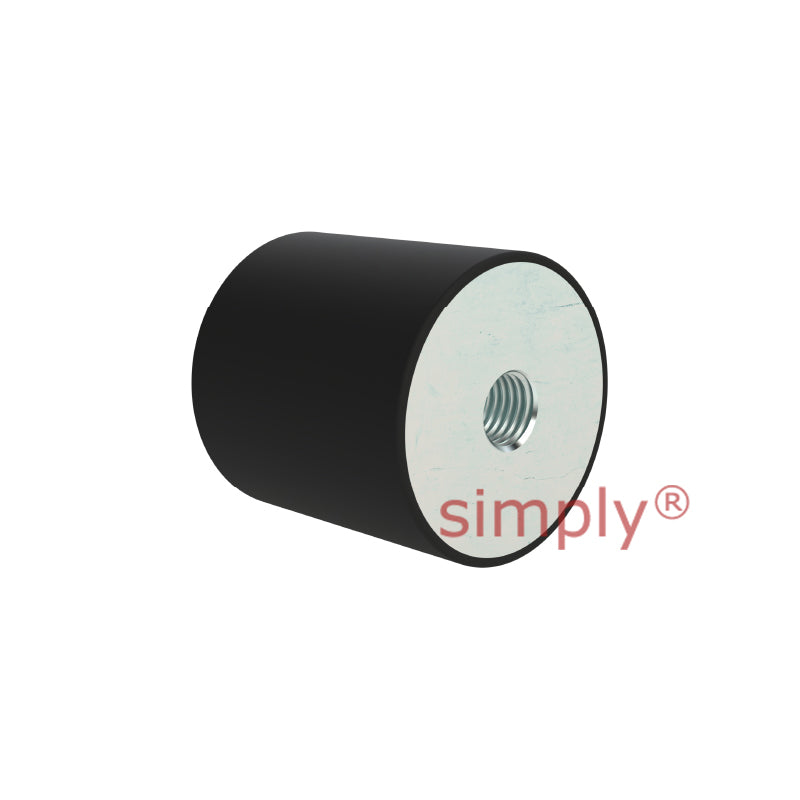

High-Performance Female Rubber Cylindrical Bump Stop 20x15mm M5 Thread
High-Performance Female Rubber Cylindrical Bump Stop 20x15mm M5 Thread
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Price Break
5+
CHF 4.73
10+
CHF 4.54
20+
CHF 4.45
50+
CHF 4.30
100+
CHF 4.21
500+
CHF 3.97
1000+
CHF 3.35
Description
Description
Female Flat Buffers: These female anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M5
- Outside Diameter:
- 20mm
- Length:
- 15mm
- Material:
- Bright Zinc Plated Steel
Technical
Technical
| L | 15mm |
|---|---|
| D | 20mm |
| D1 | M5 |
| L1 | 10mm |
| Max Compressive Load | 22.6kg |
| Deflection at Max Compressive Load | 1.7mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.01 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M5+steel+nut">M5 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M5+set+screw">M5 Click Here</a> |
