SKU: 714-604055

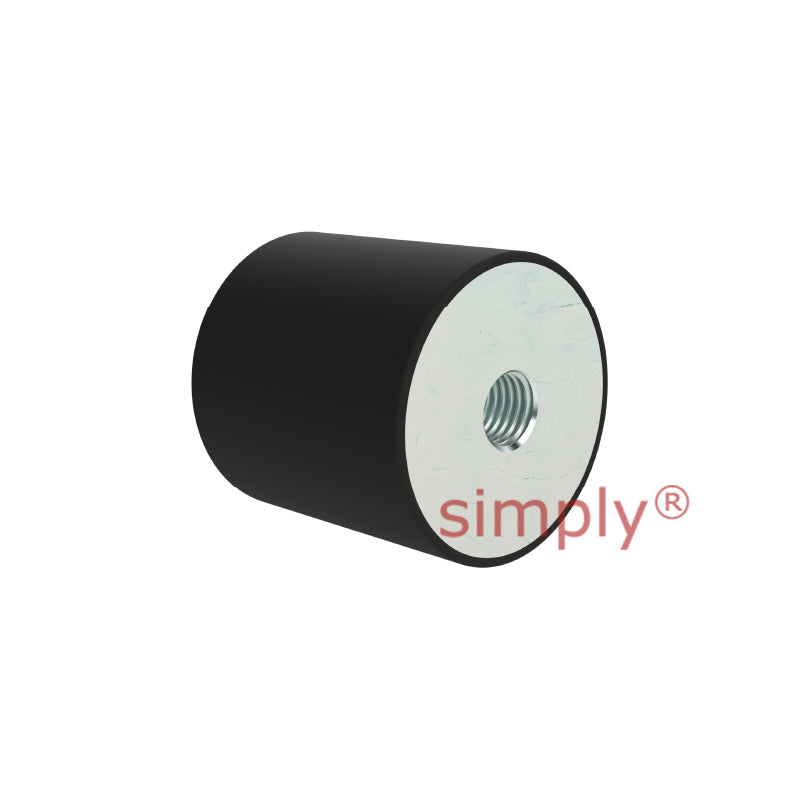

High-Performance Female Rubber Cylindrical Bump Stop 60x40mm M10 Thread
High-Performance Female Rubber Cylindrical Bump Stop 60x40mm M10 Thread
Regular price
CHF 12.91
ex VAT
Regular price
Sale price
CHF 12.91
ex VAT
In stock
Price Break
10+
CHF 11.49
19+
CHF 10.84
29+
CHF 10.72
39+
CHF 10.59
49+
CHF 10.46
74+
CHF 10.33
99+
CHF 9.68
199+
CHF 9.55
249+
CHF 9.42
499+
CHF 9.30
999+
CHF 9.04
Couldn't load pickup availability
Description
Description
Female Flat Buffers: These female anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M10
- Outside Diameter:
- 60mm
- Length:
- 40mm
- Material:
- Bright Zinc Plated Steel
Technical
Technical
| L | 40mm |
|---|---|
| D | 60mm |
| D1 | M10 |
| L1 | 10mm |
| Max Compressive Load | 128.5kg |
| Deflection at Max Compressive Load | 6.8mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.21 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a> |
