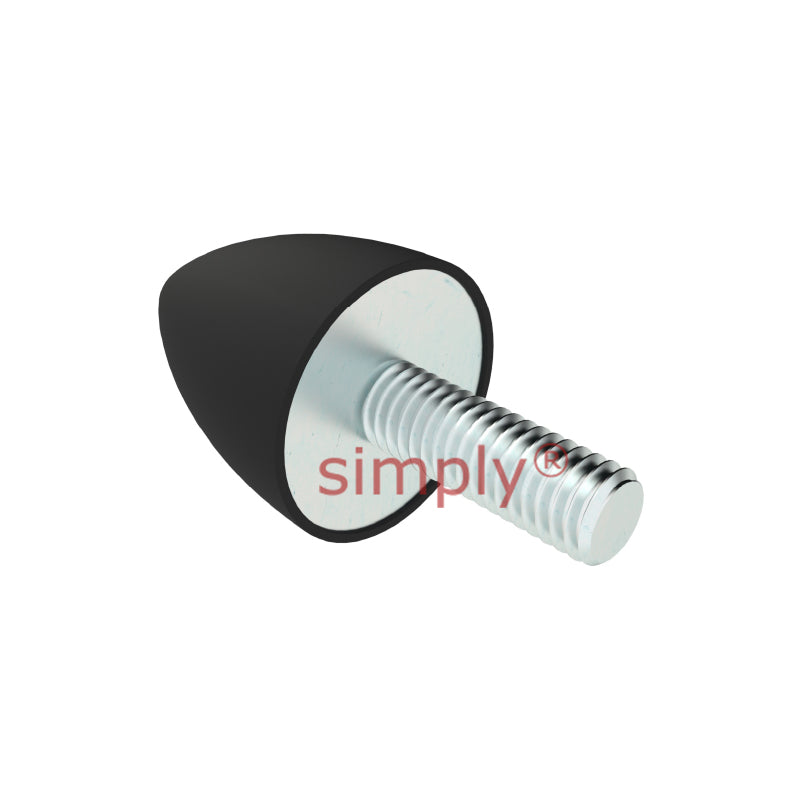

High-Performance Male Rubber Cone Bump Stop 60x60mm M12 Thread
High-Performance Male Rubber Cone Bump Stop 60x60mm M12 Thread
Regular price
CHF 12.52
ex VAT
Regular price
Sale price
CHF 12.52
ex VAT
In stock
Price Break
10+
CHF 11.14
19+
CHF 10.52
29+
CHF 10.39
39+
CHF 10.27
49+
CHF 10.14
74+
CHF 10.02
99+
CHF 9.39
199+
CHF 9.26
249+
CHF 9.14
499+
CHF 9.01
999+
CHF 8.76
Couldn't load pickup availability
Description
Description
Male Conical Buffer: These male anti-vibration conical buffers (also known as Parabolic Buffers) represent an ideal low-cost solution to your vibration dampening requirements. The innovative design of these mountings provides a progressive stiffness so that under extreme levels of deformation, the energy of the shock is absorbed gradually and the equipment is protected. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock-absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M12
- Outside Diameter:
- 60mm
- Length:
- 60mm
- Material:
- Bright Zinc Plated Steel
- Overall Length:
- 93mm
Technical
Technical
| L | 60mm |
|---|---|
| D | 60mm |
| D1 | M12 |
| L1 | 33mm |
| Max Compressive Load | 95kg |
| Deflection at Max Compressive Load | 17.6mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.21 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+steel+nut">M12 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+set+screw">M12 Click Here</a> |
