SKU: 719USOC15 .A21.0/I.S-UKF

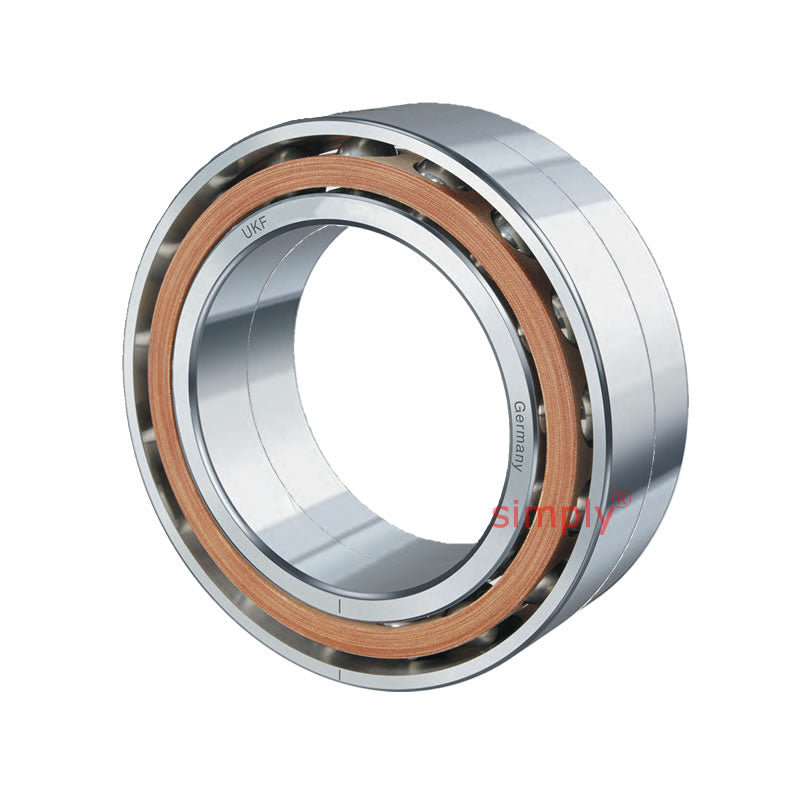

UKF 719USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
UKF 719USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
Regular price
CHF 448.07
ex VAT
Regular price
Sale price
CHF 448.07
ex VAT
Equivalent to: 719USOC15 .A21.0/I.S
In stock
Price Break
10+
CHF 398.78
19+
CHF 376.38
29+
CHF 371.90
39+
CHF 367.42
49+
CHF 362.94
74+
CHF 358.46
99+
CHF 336.05
199+
CHF 331.57
249+
CHF 327.09
499+
CHF 322.61
999+
CHF 313.65
Couldn't load pickup availability
Description
Description
Equivalent: 719USOC15 .A21.0/I.S
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 14mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Heavy preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 14mm |
| Dynamic load Co | 2860 N |
| Static load C | 5810 N |
| Speed in Grease | 57400 rpm |
| Speed in Oil | 89600 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 17.5mm |
| D<sub>a</sub> | 25.5mm |
| Axial Preload F<sub>v</sub> L | 30 N |
| Axial Preload F<sub>v</sub> M | 100 N |
| Axial Preload F<sub>v</sub> S | 200 N |
| Axial Rigidity R<sub>a</sub> L | 33 N/μm |
| Axial Rigidity R<sub>a</sub> M | 49 N/μm |
| Axial Rigidity R<sub>a</sub> S | 62 N/μm |
| Radial Rigidity R<sub>r</sub> L | 132 N/μm |
| Radial Rigidity R <sub>r</sub> M | 201 N/μm |
| Radial Rigidity <sub>r</sub> S | 253 N/μm |
| Weight | 0.03 kg |
