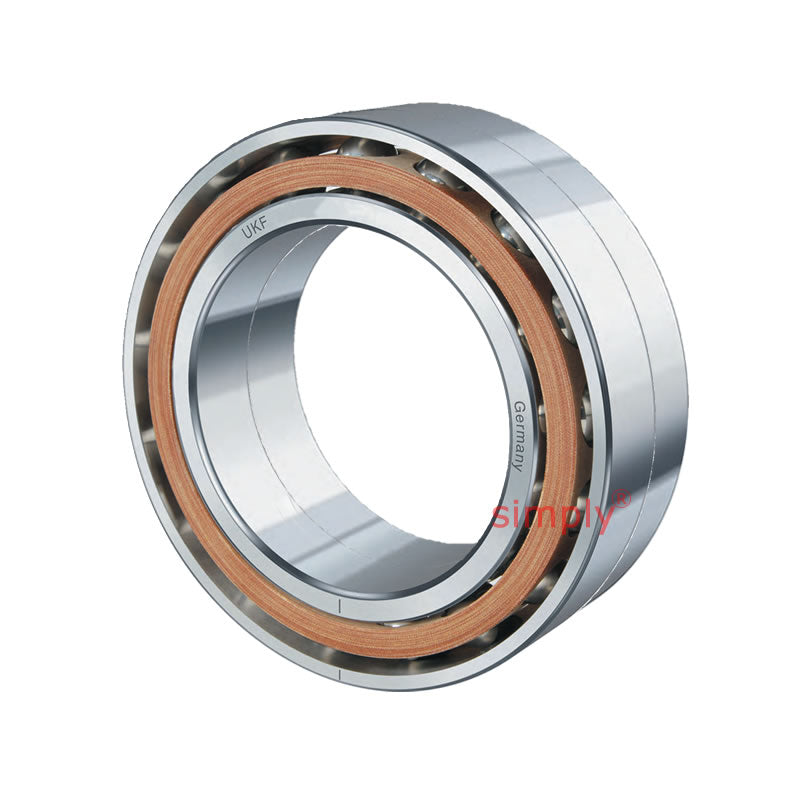

UKF 719USOC15A21I1M Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
UKF 719USOC15A21I1M Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
Regular price
CHF 286.39
ex VAT
Regular price
Sale price
CHF 286.39
ex VAT
Equivalent to: 719USOC15 .A21.I/1.M
In stock
Price Break
10+
CHF 254.89
19+
CHF 240.57
29+
CHF 237.70
39+
CHF 234.84
49+
CHF 231.98
74+
CHF 229.11
99+
CHF 214.79
199+
CHF 211.93
249+
CHF 209.06
499+
CHF 206.20
999+
CHF 200.47
Couldn't load pickup availability
Description
Description
Equivalent: 719USOC15 .A21.I/1.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 14mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 14mm |
| Dynamic load Co | 2860 N |
| Static load C | 5810 N |
| Speed in Grease | 57400 rpm |
| Speed in Oil | 89600 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 17.5mm |
| D<sub>a</sub> | 25.5mm |
| Axial Preload F<sub>v</sub> L | 30 N |
| Axial Preload F<sub>v</sub> M | 100 N |
| Axial Preload F<sub>v</sub> S | 200 N |
| Axial Rigidity R<sub>a</sub> L | 33 N/μm |
| Axial Rigidity R<sub>a</sub> M | 49 N/μm |
| Axial Rigidity R<sub>a</sub> S | 62 N/μm |
| Radial Rigidity R<sub>r</sub> L | 132 N/μm |
| Radial Rigidity R <sub>r</sub> M | 201 N/μm |
| Radial Rigidity <sub>r</sub> S | 253 N/μm |
| Weight | 0.03 kg |
