SKU: 719USOC17 .A21.0/I.M-UKF

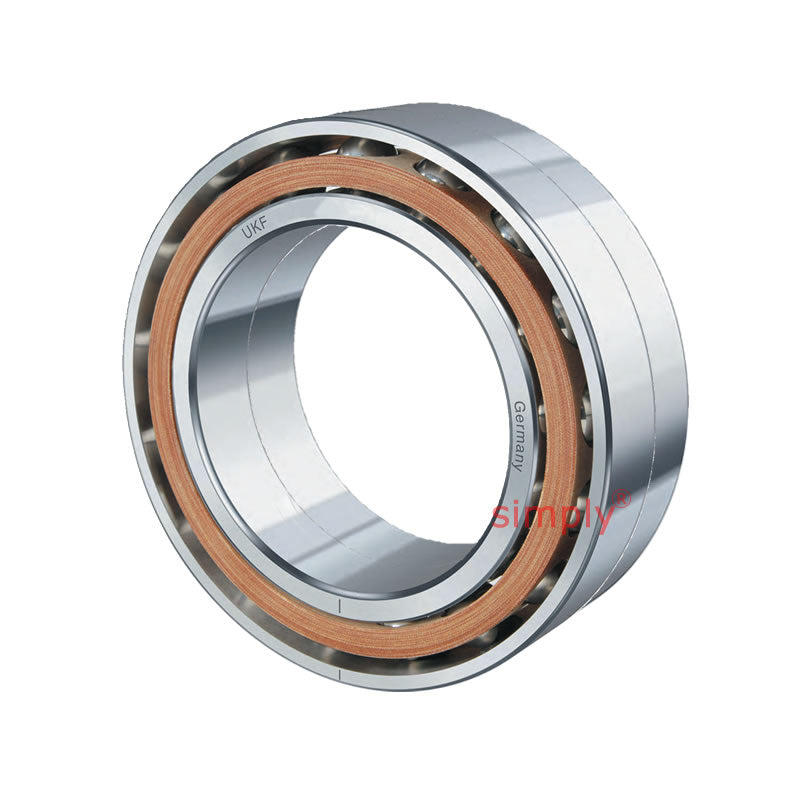

UKF 719USOC17A210IM Super Precision Double Row Angular Contact Spindle Bearing 17x30x14mm

Name: UKF 719USOC17A210IM Super Precision Double Row Angular Contact Spindle Bearing 17x30x14mm
Brand: UKF
SKU: 719USOC17 .A21.0/I.M-UKF
Price: 332.00 CHF
Availability: InStock

CHF 332.00 ex VAT

Sale Sold out

Equivalent to: 719USOC17 .A21.0/I.M

In stock

Price Break

3+ CHF 263.71

5+ CHF 248.89

10+ CHF 245.93

25+ CHF 242.97

49+ CHF 240.01

74+ CHF 237.04

99+ CHF 222.23

199+ CHF 219.26

249+ CHF 216.30

499+ CHF 213.34

999+ CHF 207.41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 719USOC17 .A21.0/I.M

Brand / Quality:: UKF - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 30mm
Width:: 14mm
Seals / Shields:: None
Style:: Double Row Angular Contact Spindle Bearings
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Medium preload

Technical

d	17mm
D	30mm
B	14mm
Dynamic load Co	3135 N
Static load C	5950 N
Speed in Grease	52500 rpm
Speed in Oil	82600 rpm
r<sub>a</sub>	0.15mm
d<sub>a</sub>	19.5mm
D<sub>a</sub>	27.5mm
Axial Preload F<sub>v</sub> L	40 N
Axial Preload F<sub>v</sub> M	110 N
Axial Preload F<sub>v</sub> S	220 N
Axial Rigidity R<sub>a</sub> L	39 N/μm
Axial Rigidity R<sub>a</sub> M	58 N/μm
Axial Rigidity R<sub>a</sub> S	69 N/μm
Radial Rigidity R<sub>r</sub> L	155 N/μm
Radial Rigidity R <sub>r</sub> M	219 N/μm
Radial Rigidity <sub>r</sub> S	276 N/μm
Weight	0.03 kg
